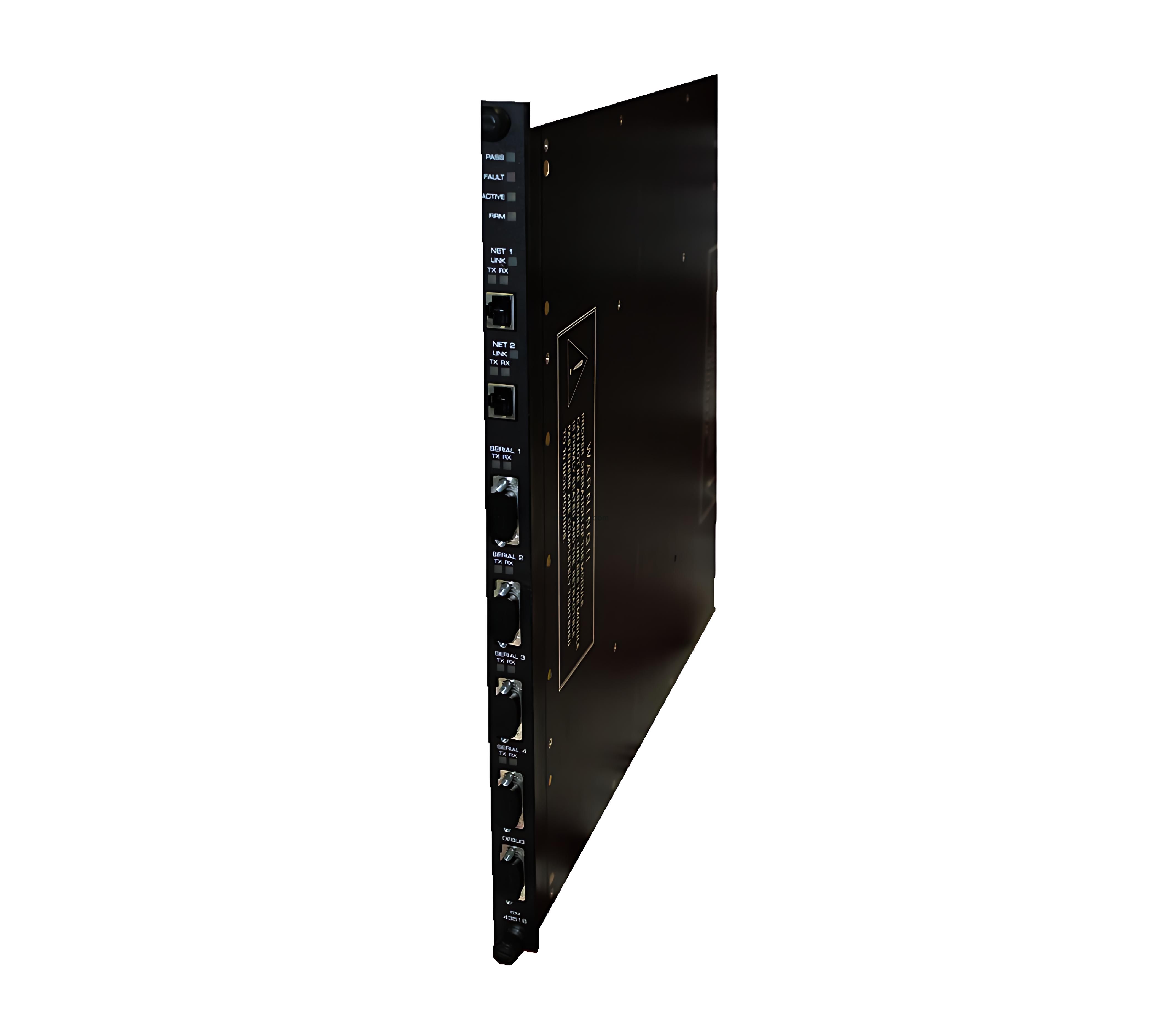

The TRICONEX 4351B is a combined communication module in the Invensys TRICONEX Congiesen control system. The details are as follows:

Functional characteristics

Digital processing: can connect multiple digital input signals for monitoring switch status, sensor signals, etc., with high-density input configuration, can connect multiple signals in a limited space.

Fault diagnosis: There are fault detection and diagnosis functions, which can monitor the integrity of the input signal and provide alarm or status information when there is a fault.

Fast response: It can quickly process the input signal and control the output signal in real time to ensure the rapid response and stability of the system.

Communication capability: provides an interface for communication with the control system, supporting a variety of communication protocols such as Modbus, TCP/IP, etc., equipped with RS-232, RS-485 and Ethernet interfaces, which can transmit input data to the monitoring system or controller.

Safety performance: May provide additional safety features such as redundant input, self-check function, etc., to ensure safety performance.

Programmable function: Support parameter setting and function configuration through programming to meet different user needs.

Performance parameters: For example, the 4351B, when used as a power module, has 16 digital outputs, each capable of driving up to 1A at 24V DC, the electrical input is rated at three-phase low voltage 400V ac, and the allowed input voltage range is 380 to 480Vac.

Application: Widely used in petroleum, chemical, electric power, industrial automation and other fields of control systems, suitable for high-reliability control and data communication scenarios, such as petroleum refining, chemical production, natural gas processing, power generation, transmission and distribution, substation automation systems and manufacturing automation production lines.

Product Specifications

Analog Input Modules

TRICONEX 4351B Communication module,On an analog input module, each of the three channels asynchronously measures the input signals and places the results into a table of values. Each of the three input tables is passed to its associated main processor module using the corresponding I/O bus. The input table in each main processor module is transferred to its neighbors across the Tricon. The middle value is selected by each main processor, and the input table in each main processor is corrected accordingly. In TMR mode, the mid-value data is used by the control program; in duplex mode, the average is used.

Triconex Modules

Digital Input

3501E EDI Module, 115V AC/DC
3502E EDI Module, 48V AC/DC
3503E EDI Module, 24V AC/DC
3504E HDDI Module, 24/48 VDC (24V)
3505E EDI Module, 24 VDC, Low Threshold

Digital Output
3601E EDO Module, 115 VAC
3603E EDO Module, 120 VDC (2)
3603T EDO Module, 120 VDC (3603E replacement during Surge test)
3604E EDO Module, 24 VDC
3607E EDO Module, 48 VDC
3611E SDO Module, 115 VAC (3)
3623 SDO Module, 120 VDC
3624 SDO Module, 24 VDC

Pulse Input
3510 Pulse Input Module

Thermocouple
3706A NITC Input Module
3708E ITC Thermocouple Input Module

3625 TMR digital output module

4351B Communication module

Relay Output
3636R ERO Module, N.O., Simplex

Miscellaneous
8105 Blank Module Panel

8107 Seismic Balance Module

Input module

TRICONEX3700A

Description: The TRICONEX3700A is a triple redundant digital input module with fault tolerance and the ability to receive digital signals from field devices.

Application: It is widely used in industrial processes requiring high reliability and safety, such as emergency shutdown system (ESD), burner management system (BMS) in petroleum, chemical, power and other industries.

TRICONEX3721 is a quadruple redundant analog input module that provides high-precision analog signal measurement and is capable of handling various types of analog input signals, such as 4-20mA current signals and 0-10V voltage signals.

Application: Suitable for industrial scenarios that require high analog monitoring, such as temperature, pressure, flow and other parameters monitoring in chemical production.

Output module

The TRICONEX3625 triple redundant digital output module is used to send digital control signals to field equipment.

Application: It can be used to control actuators such as solenoid valves and contactors to ensure reliable control of equipment operation in industrial automation systems.

TRICONEX3604E analog output module can convert the digital signal of the control system into analog signal output to drive the analog actuator in the field.

Application: It is often used in industrial processes that require precise control of analog quantities, such as the control of regulating valves.

Controller module

Description: The TRICON 3008 triple redundant controller, the core component of the TRICONEX control system, uses a two-out-of-three (2oo3) voting mechanism for extremely high reliability and fault tolerance.

Application: It can be used as the brain of the entire industrial automation and safety control system, coordinating the work of various I/O modules and field equipment, and is widely used in the control and protection of various key industrial processes.

Communication module

TRICON 4351E communication module supports a variety of communication protocols, such as Modbus, Profibus, etc., which can realize data communication and exchange between the control system and other devices or systems.

Application: It is used to build an industrial automation network to realize the interconnection and information sharing between different devices.
