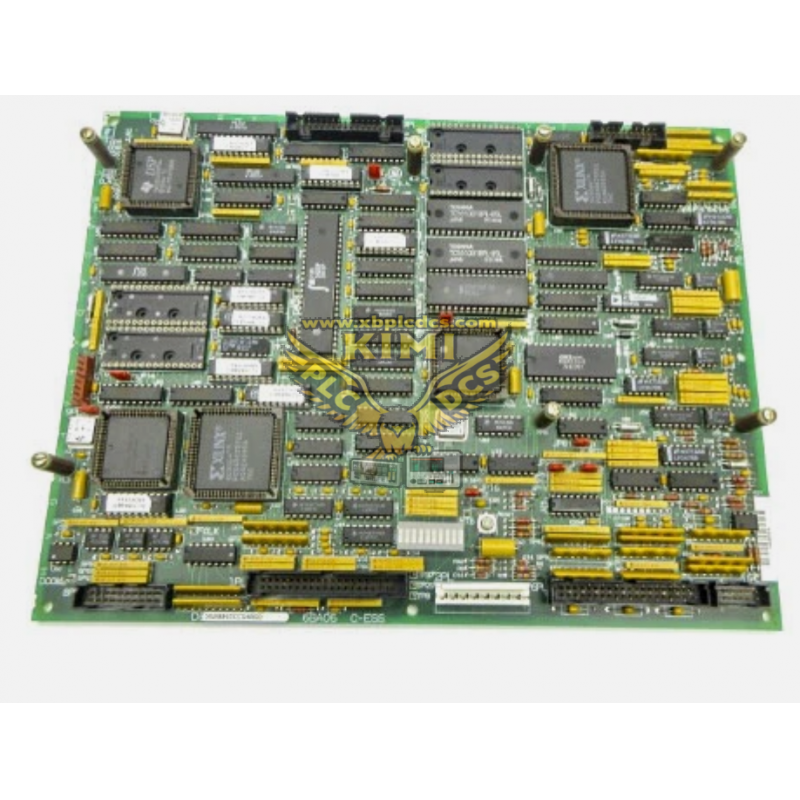

The SNP Protocol Interface Daughterboard DS200SNPAH1A is used to provide two different serial communications, RS-232C, and an isolated RS-484 communication. This model is referred to in the GEH-6373 LS2100 Series Manual.

.Many products are not yet on the shelves please contact us for more products

.If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation

.We have 20 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

Frequently Asked Questions about DS200SNPAH1A

What type of communication bus does the DS200SNPAH1A use?

The DS200SNPAH1A board uses a Series Ninety Protocol (SNP) type communications bus.

Is there a difference in using a PLC-based Load Commutated Inverter (LCI) instead of an LCI with an Innovation Series Controller?

Yes. The LCI with an Innovation Series Controller completely eliminates the use of the SNPA daughterboard whereas the PLC-based LCI will still need the SNPA board.

What manual/manuals can I use with the DS200SNPAH1A model?

The GEH-6373 Load Commutated Inverter, User's Manual has limited information on the DS200SNPAH1A board but it can be used if some information about potential connections is needed. The best manual to use with this board is the GEI-100226 User's Guide which is a part-specific manual for the SNPA.

What are the SNPA protocols that can be set on the DS200SNPAH1A board?

There are two protocol selections on the SNPA board, one being 1 which allows for the Series 90 Protocol to enable, and 0 which means that the board is disabled.
