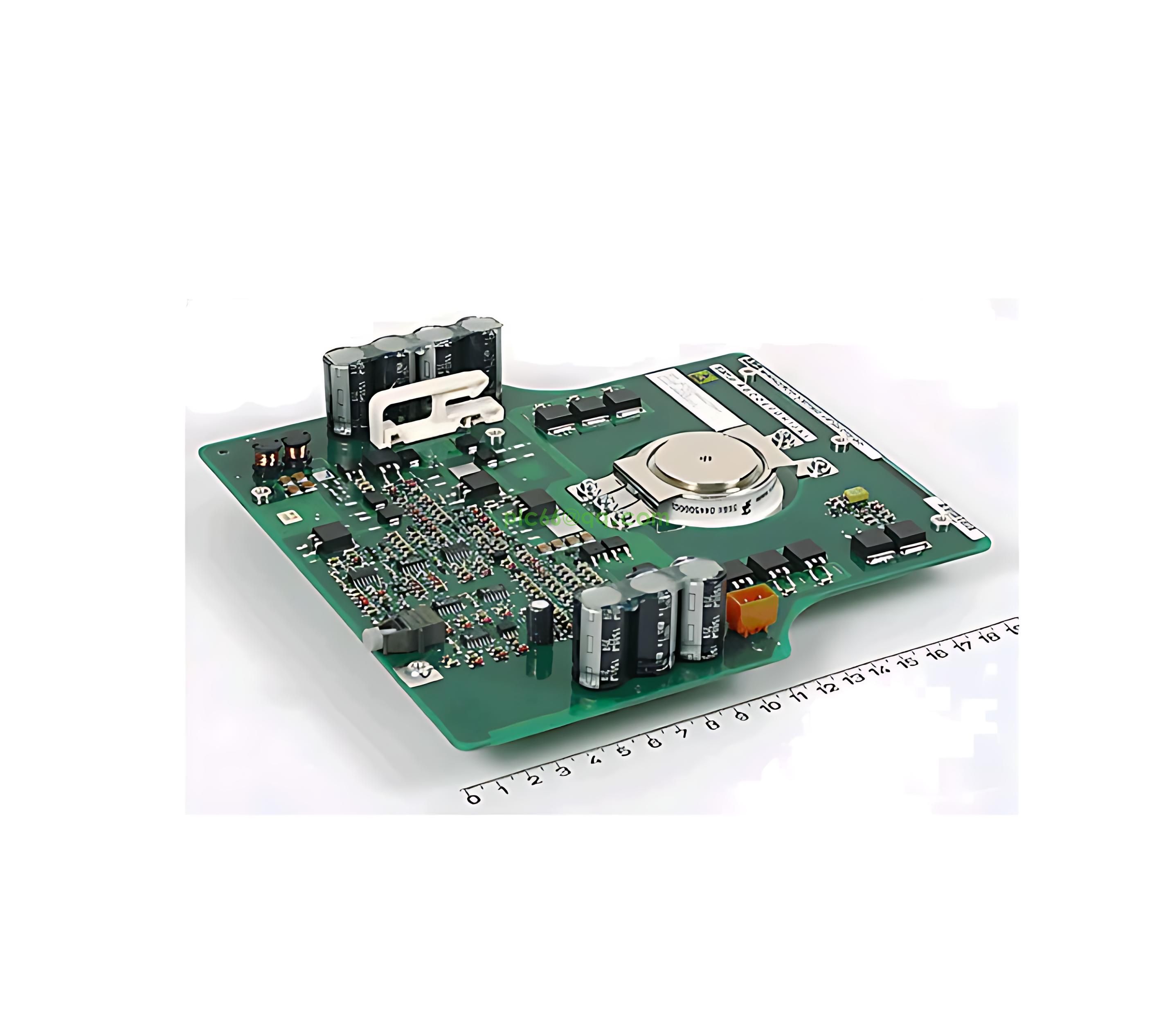

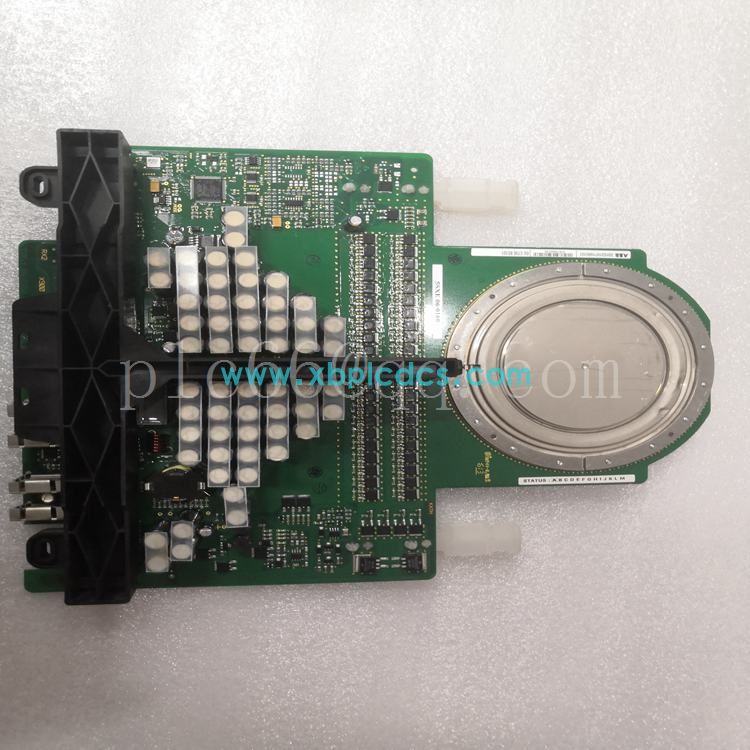

5SHY35L4522 Asymmetric IGCT General Information

Product ID:    5SHY35L4522


ABB Type Designation:    4500V 4000A


Catalog Description:    Asymmetric IGCT

Additional Information

ABB Type Designation:    4500V 4000A


Country of Origin:    Switzerland (CH)


Customs Tariff Number:    85413000


Gross Volume:    3.114 dm³


Gross Weight:    2.9 kg


Invoice Description:    Asymmetric IGCT


Made To Order:    No


Medium Description:    Asymmetric Integrated GateCommutated Thyristor


Minimum Order Quantity:    1 piece


Order Multiple:    1 piece


Package Level 1 Depth / Length:    439 mm


Package Level 1 Gross Weight:    2.9 kg


Package Level 1 Height:    41 mm


Package Level 1 Units:    1 piece


Package Level 1 Width:    173 mm


Part Type:    New


Product Name:    Control System Accessory


Product Net Height:    41 mm


Product Net Length:    439 mm


Product Net Weight:    2.9 kg


Product Net Width:    173 mm


Product Type:    Control_System_Accessory


Quote Only:    No


Replaced Product ID (OLD):    5SHY35L4512


Selling Unit of Measure:    piece


Stocked At (Warehouses):    Malmö, Sweden


Technical Information:    Asymmetric Integrated GateCommutated ThyristorMounting force 40kNHigh snubberless turn-off ratingOptimizedfor low frequencyHigh electromagnetic immunitySimple control interface with status feedbackAC or DC supply voltageOption for series connection


WEEE Category:    Product Not in WEEE Scope
