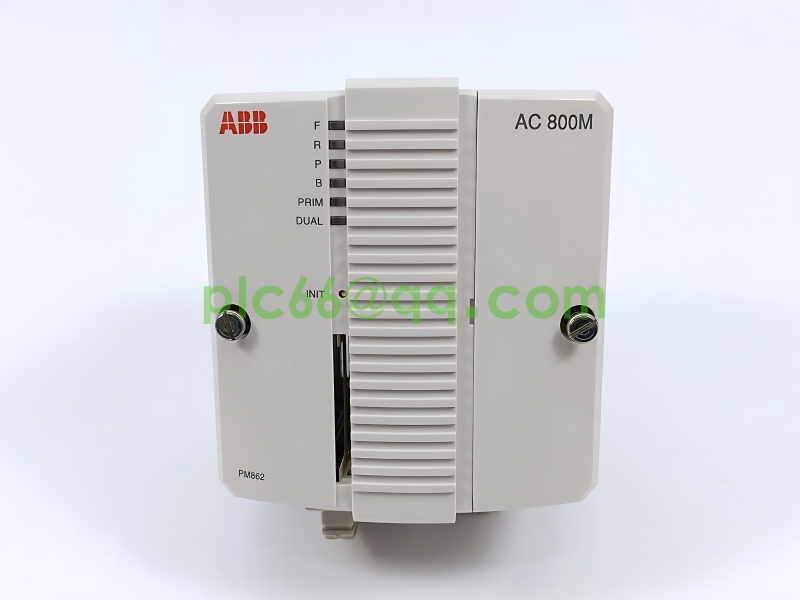

The ABB PM862K01 is one of the AC800M series controllers produced by ABB, which is mainly used in industrial automation control systems. Here are some of its features and functions:

• Hardware composition:

• CPU board: contains the microprocessor and RAM memory, used to process and store data and program instructions, to ensure the system's efficient operation and data processing capabilities, such as complex logic control operations or a large number of data processing, can quickly and accurately complete the task; With the real-time clock function, it provides the system with an accurate time benchmark, which is convenient for the time stamp and timing operation of events. LED indicator light can directly display the operating status of the controller, fault information, etc., to facilitate the operator to quickly understand the working condition of the equipment, such as when there is a fault, the corresponding indicator light will blink alarm; With init button for initializing or resetting the controller in case of system exception or need to restart; There is also a compact flash interface that can be used to store important data such as system programs and configuration files, ensuring that the data is non-volatile and will not be lost even in the case of power failure.

• Ethernet interface: Two RJ45 Ethernet ports (CN1, CN2) on the baseplate are used to connect to the control network for high-speed data communication with other devices or systems, supporting protocols such as Manufacturing Messaging Service (MMS) and interapplication Communication (IAC), such as in industrial automated production lines. It can interact with the upper computer monitoring system, other controllers or intelligent devices to achieve centralized monitoring and collaborative work. There are also two RJ45 serial ports (COM3, COM4), of which one serial port (COM3) is an RS-232C port with a modem control signal, and the other (COM4) is used to connect the configuration tool for easy parameter setting, debugging and maintenance.

• Other: Support for simple DIN rail mounting with unique sliding and locking mechanisms that simplify installation and removal procedures for quick installation and replacement of controllers on industrial sites; All baseboards have a unique Ethernet address, and each CPU also has a hardware ID, which can be found on the Ethernet address label connected to the TP830 baseboard for easy identification and management of devices in the network.

• Performance parameters:

• Clock frequency: 67MHz, the higher clock frequency helps to quickly process various control tasks and data communication, to ensure the real-time response of the system.

• Boolean operation performance: 1000 Boolean operations only need 0.18 milliseconds, can quickly perform logical operations, to meet the requirements of high logic control response speed application scenarios, such as fast sequence control, interlock protection and other logical control tasks, can quickly and accurately make judgments and perform the corresponding actions.

• Memory capacity: In terms of memory, there are 32MB of RAM for applications, and 23521MB of flash memory for storage, the larger memory space can store more program code, data and configuration information, support complex control algorithms and large-scale data processing, to adapt to the needs of large-scale industrial control systems.

• Power requirements: The power supply is DC24V (19.2V to 30V), in terms of power consumption, the +24V type/maximum is 210/360mA, and the power dissipation type is 5.1 watts (maximum is 8.6 watts). In some industrial environments with high power stability requirements, it can ensure the stable operation of the controller, and the power requirements of the power supply are within a reasonable range, which is easy to adapt to the power system of the industrial site.

• Redundant support: Support CPU redundancy to achieve high availability, including CPU, CEX bus, communication interface and S800 I/O and other parts of the redundancy, greatly improve the reliability and stability of the system, for example, in some key production processes, even if a component fails, the redundant part can immediately take over the work, avoid system downtime. Reduce production losses.

• I/O capability: I/O clusters on the non-redundant module bus, the CPU (CPU) has 1 electrical + 7 optical components; The maximum I/O capacity on the module bus is 96 (single PM862) or 84 (redundant PM862). I/O module The module bus scanning rate is 0-100 ms (the actual time depends on the number of I/O modules), the power supply current on the electrical module bus is up to 1.0A at 24V and 1.5A at 5V. With strong I/O processing capabilities, it can connect and manage various types of input and output devices to meet the signal acquisition and control output needs of different industrial sites, and can flexibly adjust the scanning rate according to the actual number of I/O modules to ensure the real-time and accuracy of I/O signals.

• Communication interface: In addition to the Ethernet and serial port communication mentioned above, there is also a built-in redundant Ethernet communication port, which improves the reliability and stability of network communication and avoids communication interruption due to the failure of a single network port; Support Profibus DP and other communication protocols, can communicate with different types of equipment and systems, to achieve the integration and interconnection of industrial automation systems, such as support Profibus DP protocol inverter, sensors, actuators and other equipment to communicate, build a complete automation control system.

• Environmental adaptability:

• Temperature: The operating temperature range is + 5 to + 55°C (+41 to + 131°F), the storage temperature range is -40 to + 70°C (-40 to + 158°F), and the temperature change rate is 3°C/min, which can adapt to a wide range of temperature environments. Whether it is in a hot industrial workshop or a cold warehouse environment, it is guaranteed to work properly.

• Humidity: Relative humidity of 5% to 95%, non-condensing state, can also operate reliably in humid environments, such as in some high humidity production sites, such as food processing workshops, paper mills and other environments, can still maintain stable performance.

• Pollution level: According to IEC/EN61131-2 standard, the pollution level is 2, with a certain anti-pollution ability, and can be used in industrial sites where there is a certain amount of dust, oil pollution and other environmental pollution.

• Corrosion prevention: complies with G3 standards and protects against common corrosive gases and liquids. It is suitable for industrial environments where corrosive substances may exist, such as chemical and electroplating industries.

• Vibration and shock: In terms of vibration, in the frequency range of 10Hz to 50Hz, the amplitude is 0.0375 mm; In the frequency range of 50Hz to 150Hz, the acceleration is 0.5g; In the frequency range of 5Hz to 500Hz, the acceleration is 0.2g. In terms of impact, it can withstand a certain degree of mechanical impact to ensure that in the complex mechanical vibration and impact environment of the industrial site, the hardware structure and electronic components of the controller will not be damaged to ensure stable work.

• Altitude: It can be used normally in an environment with an altitude of no more than 2000m, and it can meet the installation requirements of most industrial places, whether it is a factory in the plain area or an industrial facility in the plateau area, it can operate reliably.

• Noise: The noise level is less than 55dB (A), and the noise generated during operation is small, which will not cause great interference to the working environment of the operator, and help to create a relatively quiet industrial production environment.

• Protection level: Protection level is IP20, according to EN60529, IEC529 standards, can prevent more than 12.5mm solid foreign bodies into the internal circuit and components to play a basic protective role, suitable for general industrial environment, to avoid foreign bodies into the equipment failure.

• Electromagnetic compatibility: Through the complete EMC certification, with good electromagnetic compatibility, can work stably in a complex electromagnetic environment, not affected by electromagnetic interference caused by other electronic equipment and electrical equipment, but also will not cause electromagnetic interference to the surrounding equipment, to ensure the overall stability and reliability of industrial automation system.
