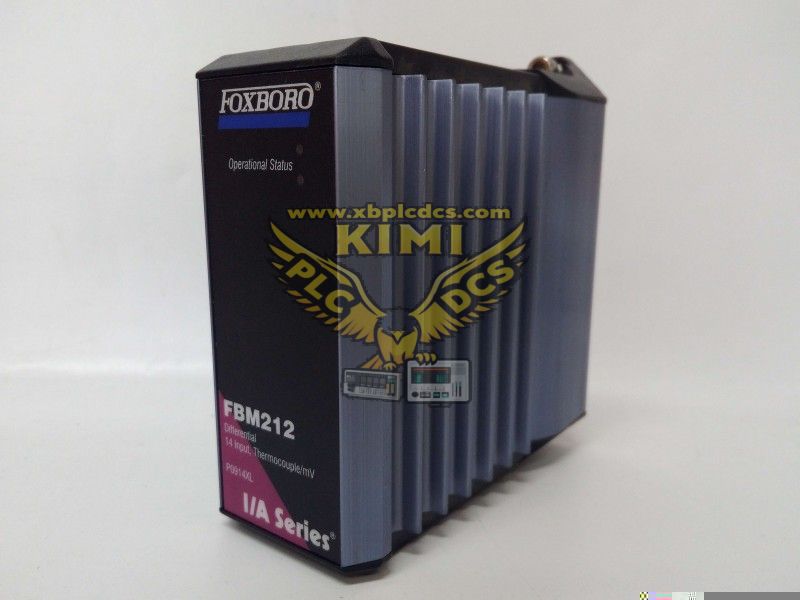

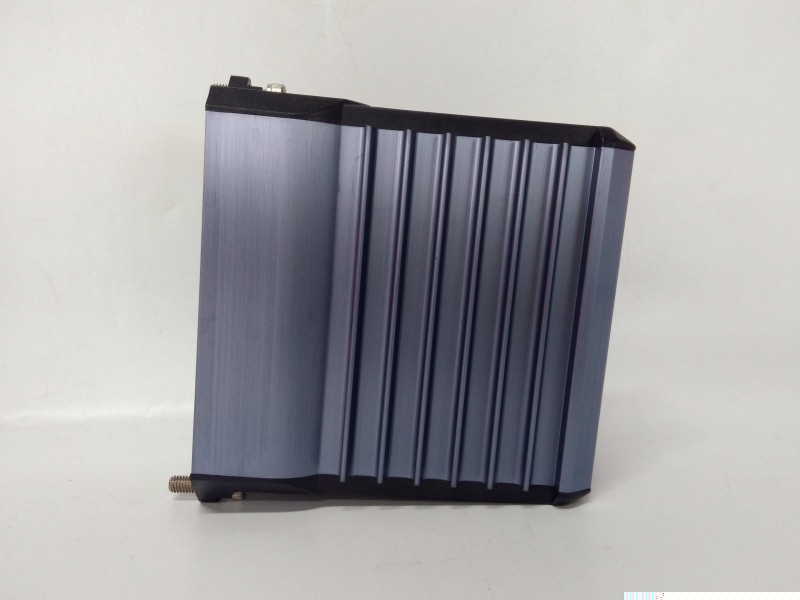

The FBM212 is A module in the FOXBORO I/A Series system, and the following is a detailed
introduction to it:
Thermocouple input: Contains 14 differential isolated thermocouple input channels that accept a standard thermocouple range of various temperatures, and each channel provides thermocouple burn detection (high grade). In addition, there is a differential isolated RTD reference junction temperature compensation channel (for terminal temperature sensing). Each thermocouple/MV channel can receive standard thermocouple signals in different temperature ranges, which makes it suitable for a variety of temperature measurement scenarios, including temperature monitoring in both low and high temperature environments. For example, it is used in furnace temperature monitoring in metallurgical industry and reaction temperature measurement in chemical industry.
Signal conversion and processing: Perform the signal conversion required to connect the electrical input to convert the signal from the field thermocouple sensor onto an optional redundant fieldbus. It is capable of performing analog input applications and provides configurable conversion options such as conversion time and rate of change limits. Through the accurate conversion and processing of input signals, accurate and reliable temperature data are provided for the control system, so that the control system can make corresponding decisions and control operations according to these data.
Differential input characteristics: Each channel has a differential input in a way that allows voltage differences between channels to exist without introducing detected errors. This feature helps to improve the anti-interference ability of the signal, reduce the influence of common mode interference and other factors on the measurement results, and ensure the accuracy and stability of temperature measurement. The quality of the measured signal can be ensured even in the presence of complex electromagnetic interference environments in industrial sites.
Input range: Suitable for a variety of standard thermocouple temperature range, different types of thermocouples corresponding to different temperature measurement range, such as K type thermocouple measurement range is generally in -200 ℃ to 1300℃, S type thermocouple measurement range is usually in 0℃ to 1600℃ and so on.
Isolation voltage: There is usually a high isolation voltage between the input channel and other channels and ground wires. For example, it can withstand a certain value of AC voltage within one minute (the specific value may vary depending on the product model and manufacturer). The high isolation voltage can effectively prevent interference between different signals and the impact of external interference on the system, and ensure the stable operation of the system and the accuracy of measurement.
Communication interface: Through a specific communication interface to communicate with other devices or controllers in the system, common communication methods may include fieldbus communication, etc., in order to transmit the collected thermocouple temperature data to the upper control system or other related equipment for processing and analysis.
Industrial automation: In the industrial production process, widely used in temperature monitoring and control. For example, in the blast furnace temperature monitoring in the steel plant, the rotary kiln temperature detection in the cement plant, and the temperature measurement of various reactors in the petrochemical industry, the FBM212 can collect temperature data in real time and accurately, providing a basis for the optimization and control of the production process, ensuring the stable and efficient production process, and improving product quality and production efficiency.
Energy field: In the power industry, it can be used for temperature monitoring of generator sets, transformers and other equipment; In the field of new energy such as solar energy and wind energy, it is used for temperature monitoring of key equipment and components. For example, in solar photovoltaic power stations, the temperature monitoring of solar panels helps to detect abnormal conditions such as overheating in time to ensure the safe operation of the system; In wind turbines, temperature monitoring of key components such as gearboxes and bearings can provide early warning of potential failures, reducing equipment downtime and maintenance costs.
Research experiments: In research laboratories, the FBM212 can be used for a variety of experimental projects requiring accurate temperature measurement and control. For example, in materials science research, the performance of materials under different temperature conditions is tested; In chemical experiments, the precise control and monitoring of reaction temperature provide accurate temperature data for researchers and help the smooth progress of scientific research.
Email: plc66@qq.com
Phone: +86 18059884790(WHATSAPP/WeChat)
Sales:LIMING
The price is subject to confirmation by the contact person LI MING (manager).
Product: Brand new original packaging
Payment method: 100% telegraphic transfer. Conditions can be negotiated before shipment of inventory goods!
If you have any downtime spare parts that cannot be found, please feel free to call or contact me via email at any time.
If there are any issues that the product cannot solve, please contact me.
Many products have not been listed yet. Please contact us for more products！！！
If there is any inconsistency between the product model and the displayed picture, the model shall prevail.
Please contact us for specific product pictures, and we will arrange for photos to be taken in the warehouse for confirmation
We have 22 shared warehouses worldwide, so please understand that sometimes it may take several hours to respond accurately to you.
Of course, we will respond to your concerns as soon as possible
Our company can directly purchase from overseas, can provide different countries, manufacturers of equipment and spare parts, to
solve your many places to find trouble or worry about product quality problems, etc., in the price we have a great advantage, product
details, we sincerely welcome you to inquire or use E-mail query!
