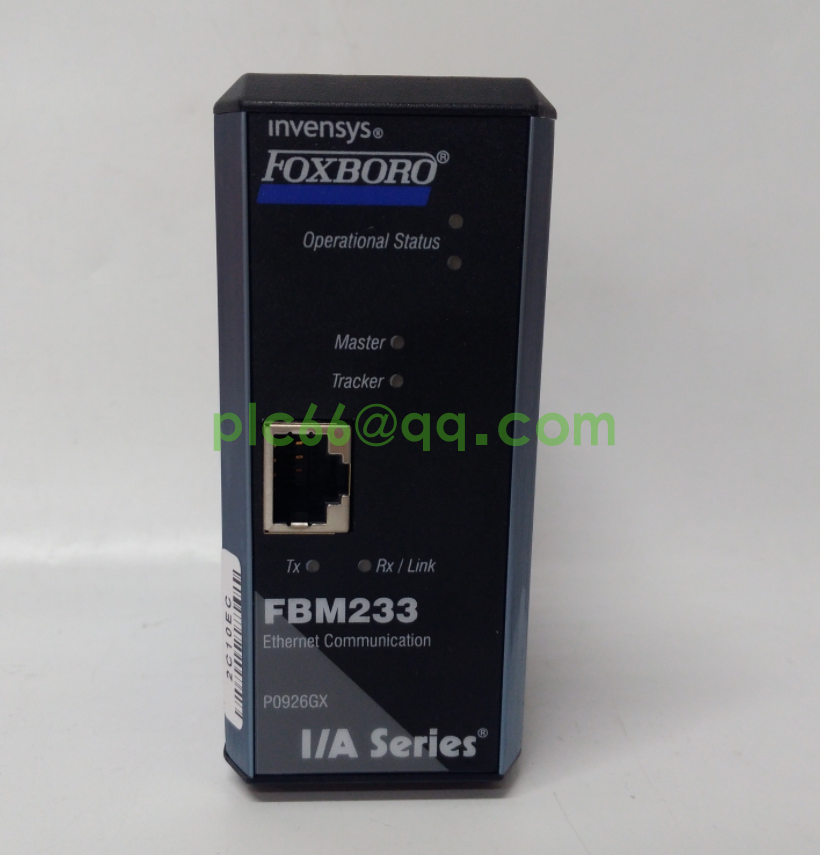

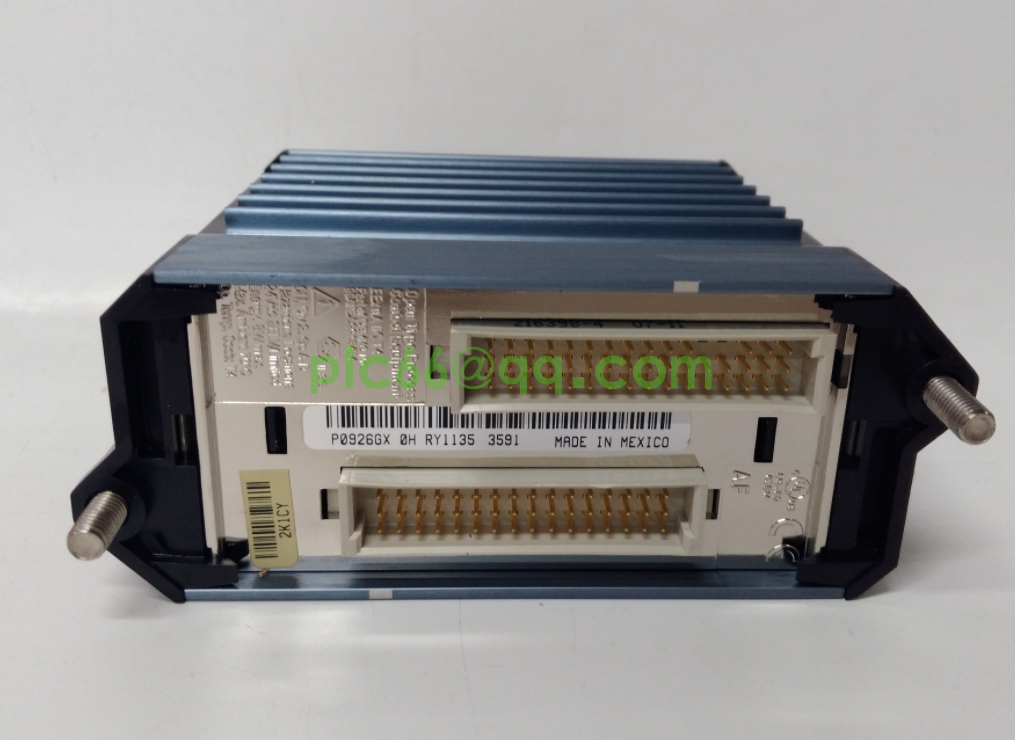

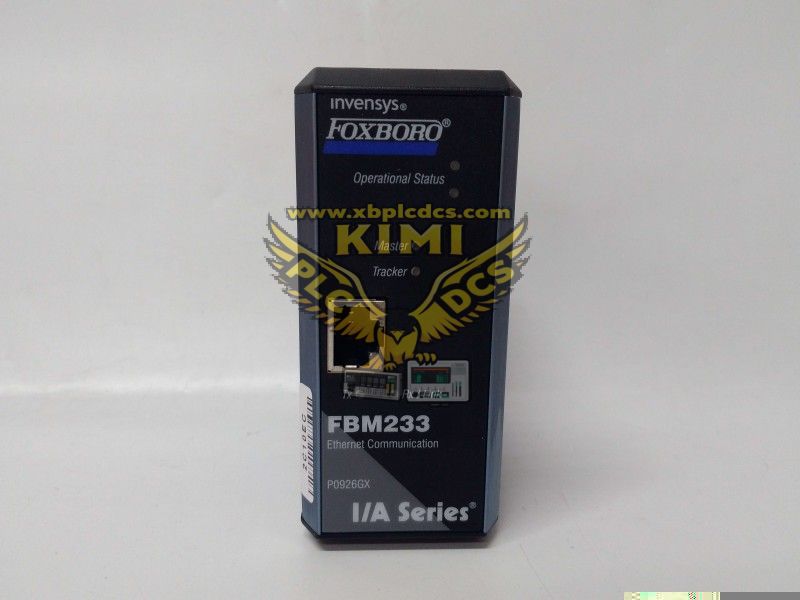

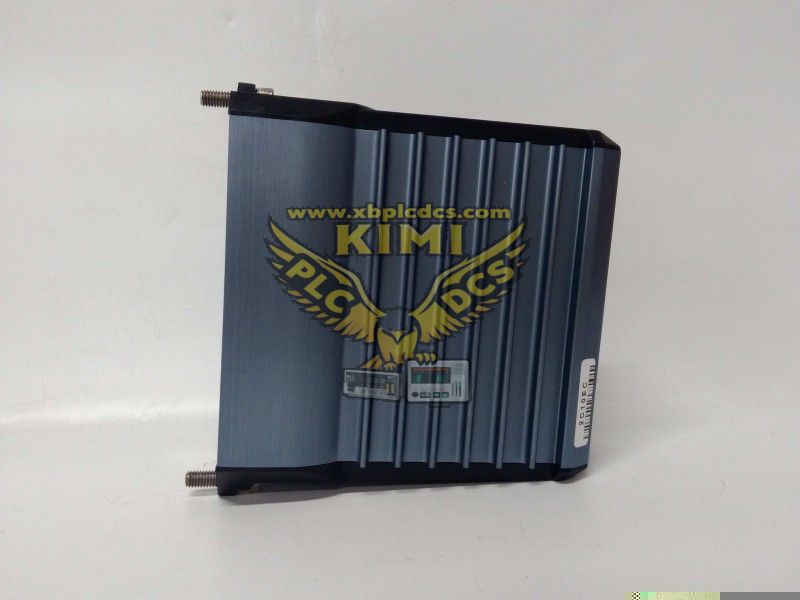

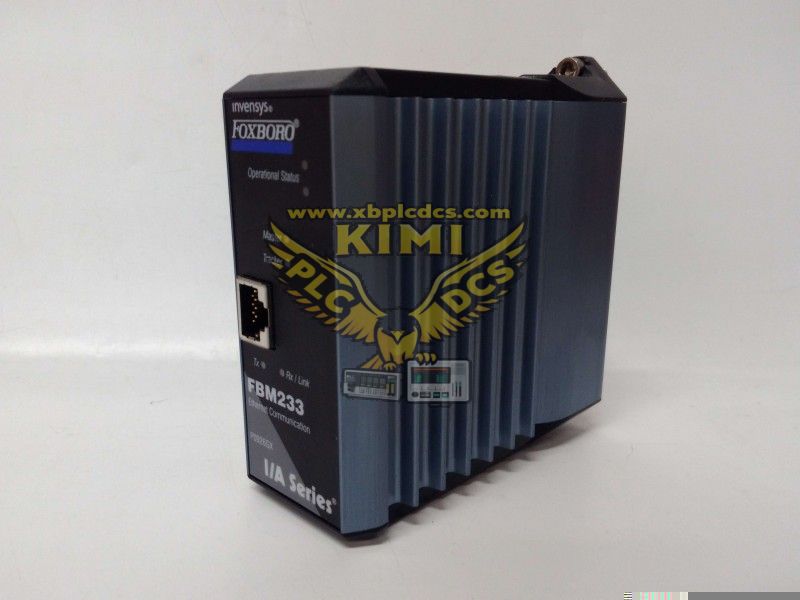

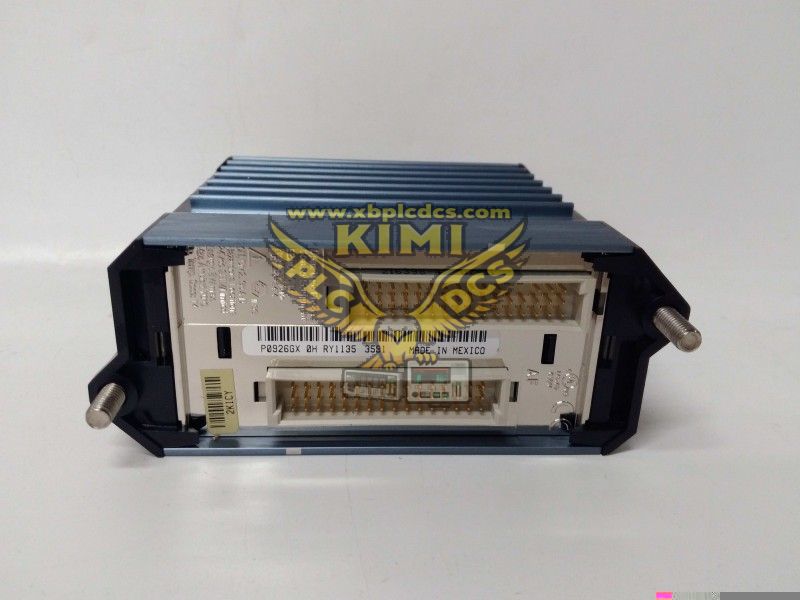

The FBM233 is A module in FOXBORO's I/A Series system. Here is some information about it:

• Features:

• Ethernet communication: With 10Mbps or 100Mbps Ethernet communication capability, through the front end of the RJ-45 connector (10/100Mbps copper Ethernet connection) to achieve connection to Ethernet devices. It can be connected to an Ethernet switch or hub, and can communicate with one external device or up to 64 external devices, providing a high-speed, stable data transmission channel between field devices and the control system.

• Redundancy configuration: The combination of a pair of FBM233 modules provides redundancy at the field bus module (FBM) level. One of them acts as the master station and the other is the tracking module. The input point on the control station receives device input point updates from the network connected to the master station, and the device output point (depending on the I/O driver) is written by both the master module and the tracking module. If the I/O driver detects a problem (for example, the device loses heartbeat), it automatically switches roles. Users can also use the SMDH to switch roles at any time, improving system reliability and stability.

• Flexible configuration and extensibility: XML-based port and device profiles can be set up through the FDCI configurator. The port configurator makes it easy to set communication parameters for each port, such as Dynamic Host Configuration Protocol (DHCP), IP address, etc. When needed, the device configurator can also configure device-specific and point-specific parameters, such as the scan rate, the address at which the data is to be transferred, and the amount of data to be transferred in a single transaction. And the module has certain expansibility, easy to integrate and communicate with other systems or devices.

• High reliability: The use of high-quality materials and advanced manufacturing processes, with strong anti-interference ability, can operate reliably in complex industrial environments (such as electromagnetic interference, temperature changes, etc.), ensure the continuous and stable work of the system, reduce the risk of production disruption caused by module failure. Generally, it can adapt to G3 (harsh) environmental conditions, and has certain dustproof, moisture proof, and vibration resistance, reducing the impact of environmental factors on module performance and life.

• Multiple protocols supported: As a general-purpose Ethernet hardware module, the FBM can be loaded with different software drivers that are configured to recognize the specific protocols used by the device. Some software drivers are standard products, and other customized drivers can be developed according to specific needs, and can communicate with different types and different brands of equipment and systems, with strong compatibility and versatility.

• Features:

• Data acquisition and transmission: Collect various data from the connected field equipment, such as analog input (temperature, pressure, flow, etc.) or digital input (switching state, discrete signal, etc.), and convert these data to the Foxboro DCS control database through Ethernet to achieve real-time acquisition and centralized management of field data. Provide data basis for monitoring and analysis of production process.

• Equipment control: According to the instructions of the control system, the control signal is output to the field equipment through Ethernet communication to realize the control operation of the equipment, such as the control of the start and stop of the motor, the opening adjustment of the valve, etc., to complete the accurate regulation of the industrial process.

• Communication protocol conversion: Using specific software drivers loaded to achieve the conversion between different communication protocols, so that the FBM233 can communicate with third-party devices using various protocols, convenient integration and application in a variety of industrial automation systems, reducing the complexity and cost of system integration.

• Distributed Control Interface (DCI) connectivity: Supports up to 2000 DCI block connections through which data can be read or written from the Foxboro DCS control station for centralized monitoring and management of field devices. In addition, the frequency of the control station accessing the FBM233 data can reach 500ms at the fastest (the performance depends on the type of equipment and the data layout in the equipment), which meets the requirements of industrial control scenarios with high real-time requirements.

The FBM233 module is widely used in industrial automation fields, such as the manufacturing industry, power system, chemical industry, and oil and gas industry. It can be used to implement device networking, data collection and monitoring, and process control functions to improve the automation level and management efficiency of industrial production. In specific applications, select and configure the module based on actual system requirements, device compatibility, and site environment, and install and commission the module correctly to take full advantage of its performance and functions.
