Product overview

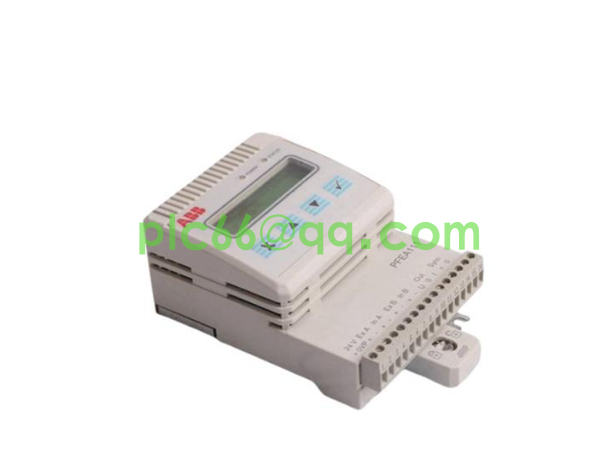

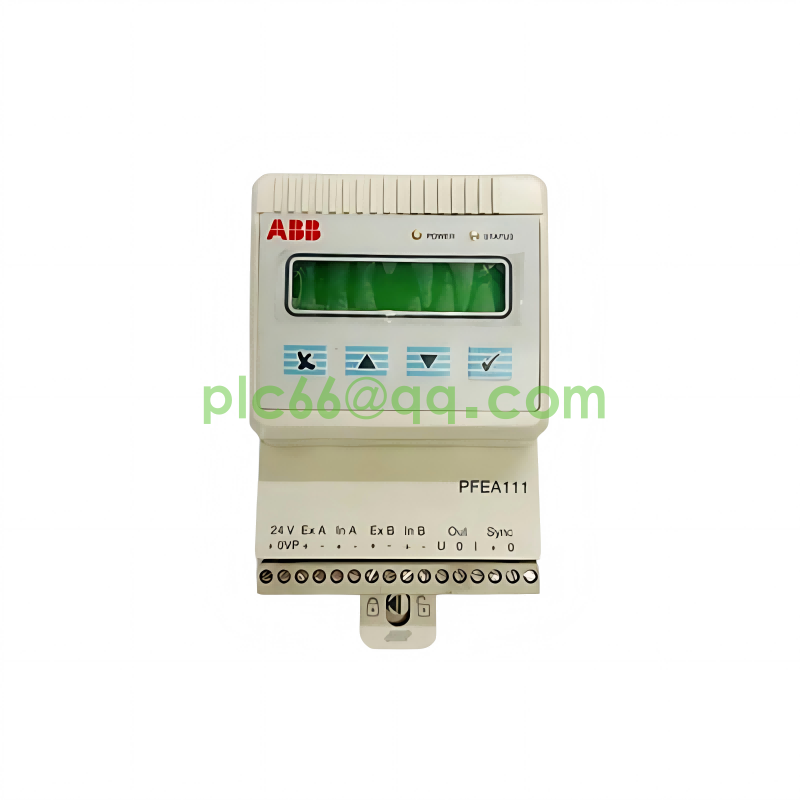

The PFEA111-20 3BSE028140R20 Tension controller is designed by ABB to meet the tension control needs of various industrial environments. It integrates advanced electronic technology and precision control algorithm, which can accurately measure and regulate the tension, and provide stable and reliable tension guarantee for the production process.

Technical characteristics

Wide voltage input: The tension controller supports the supply voltage of 100-240V AC, which can adapt to different industrial power environments, reduce the use restrictions caused by voltage mismatch, and improve the compatibility and stability of the equipment.

High adaptability temperature range: It can work stably at operating temperatures of up to 70°C, which makes it possible to operate normally in some high-temperatu

re industrial environments, such as metallurgy, glass manufacturing and other industries.

Compliance with EMC standards: Electromagnetic compatibility (EMC) standards can be met without additional housing, which not only simplifies the installation and use of equipment, but also effectively prevents the impact of external electromagnetic interference on the controller, ensuring the accuracy of its signal transmission and control.

Convenient installation and maintenance design: the bottom is equipped with a pluggable screw end bar, convenient wiring and maintenance operation; At the same time, the ground point for cable shielding is built in, which improves the anti-interference ability and security of the system.

Easy to debug operation: with step by step menu setting function, users can quickly complete the control unit Settings according to clear steps. Predefined standard measurement modes are also available, as well as easy-to-configure analog/digital input/output ports for easy connection to a wide range of sensors and actuators. In addition, with threshold judgment, unit selection (N, kN, MN, kp, t, lb, T) and simulation functions, it is easy to check the system integration, greatly reducing the difficulty and cost of commissioning.

Powerful self-diagnosis and remote monitoring capabilities: equipped with a self-diagnostic test system, it can detect key components such as sensors in real time, and find and report faults in time. It also supports the import and export of setting parameters through a PC, and can achieve remote access through a network connection, which is convenient for operators to remote monitoring and management, and improves the maintenance efficiency and convenience of the equipment.

Application field

Printing and packaging industry: In the printing process, it can ensure that the paper or film in the transmission and winding process to maintain the appropriate tension, to prevent wrinkles, excessive stretching and other problems, so as to ensure the printing quality. In the field of packaging, for the packaging of film, paper and other coils, the tension can be precisely controlled to ensure the tightness and stability of packaging materials, and improve packaging efficiency and quality.

Textile industry: In all aspects of textile production, such as spinning, weaving and other processes, it can be used to control the tension of yarn or fabric, ensure the uniformity of yarn and the flatness of fabric, and improve the quality of textiles.

Metal processing industry: In the rolling, stretching, winding and other processing processes of metal strip or wire, it can accurately control the tension, ensure the dimensional accuracy and surface quality of metal materials, and prevent problems such as fracture or deformation of materials during processing.

Plastics and rubber industry: In the production process of plastic film and rubber products, such as extrusion, stretching, blow molding and other processes, the tension of the material can be accurately controlled to ensure the thickness uniformity and dimensional stability of the product.

Cable manufacturing industry: In cable production, it can ensure that the tension of the wire or cable is appropriate during the stretching and winding process, prevent damage to the internal structure of the cable, and improve the quality and performance of the cable.

Market value

As a quality product from ABB, the PFEA111-20 3BSE028140R20 tension controller provides an efficient and accurate solution for tension control in industrial production with its excellent performance, reliable quality and wide applicability. It can not only help enterprises improve production efficiency and reduce production costs, but also improve product quality and enhance the competitiveness of enterprises in the market.

To sum up, ABB's PFEA111-20 3BSE028140R20 tension controller is a technologically advanced, high-performance industrial control equipment that plays an important role in many industrial fields and is a reliable choice for accurate tension control.

ABB's PFEA111-20 3BSE028140R20 is a tension controller, the following is its related introduction:

Basic information

Country of origin: Sweden.

Gross weight: 0.2kg.

Product Description: Zhang Li electronic equipment PFEA111-20.

Technical characteristics

Input/Output: With 2 load cell inputs, voltage and current output A+B, and with adjustable filtering function.

Display function: The value of A, B, A+B, A-B can be displayed on the display screen.

Application field

Power industry: In the process of thermal power, hydropower, nuclear power, wind power and other power generation, it is used for tension control of transmission belts, cables, etc., to ensure the stable operation of equipment and the reliability of power transmission.

Manufacturing: Applicable to steel manufacturing, glass manufacturing, paper making, machinery manufacturing, electronic manufacturing, automobile manufacturing, aviation manufacturing, chemical manufacturing and other industries. For example, in the papermaking process, the tension of paper in the production and transmission process is controlled to ensure the quality and smoothness of paper; In automobile manufacturing, the tension in the production process of automobile interior trim parts and wire harnesses is accurately controlled.

Mining industry: In the mining, transportation and processing of metal and non-metallic ores, it can be used to control the tension of conveyor belts, lifting cables, etc., to ensure the safety and efficiency of mining operations

Models related to PFEA111-20 3BSE028140R20 are as follows:

Same series tension controller

PFEA111-65 3BSE028140R65: belongs to the same series as PFEA111-20 but may differ in some functional parameters or application scenarios, perhaps in the level of protection, environmental adaptability, or support for specific functions.

PFEA112-20 3BSE030369R20: belongs to the same series of different models, may be different from PFEA111-20 in terms of input and output points, control accuracy, communication interface, etc., suitable for tension control projects of different sizes or needs.

Pfea112-65 3BSE030369R65: It is also a kind of PFEA112 series, similar to PFEA112-20, but some parameters or functional characteristics may be adjusted for different use environments or requirements.

PFEA113-20 3BSE028144R20: In the same series may focus on different application priorities, perhaps in the anti-interference ability, signal processing speed and other aspects of its unique to meet the tension control needs of specific industrial environments.

Pfea113-65 3BSE028144R65 is a model in the PFEA113 family, which may differ from the PFEA113-20 in terms of electrical performance, mechanical structure, or software functions to adapt to different working conditions.

PFEA113-65.1PXV 3BSE028144R165: A derivative of PFEA113-65 that may be optimized for some special features or configurations, such as compatibility with certain external devices or specific signal processing.

PFEA113-65.2PXV 3BSE028144R265: Similar to PFEA113-65.1PXV, there are further differences in function or configuration to meet the needs of more detailed application scenarios.

PFEA113-65.3PXV 3BSE028144R365: It is also a member of the PFEA113-65 series, which may differ from the first two models in some characteristics, such as different performance in signal transmission distance and precision control.

PFEA113-65.4PXV 3BSE028144R465: In this series may be customized for specific industry applications or special control requirements, and may be unique in data processing capabilities or control strategies.

PFEA113-65.1PXC 3BSE028144R1165: May be different from other PFEA113-65 series models in terms of electrical connection, physical structure, or software algorithms, and is suitable for different installation environments or system integration requirements.

PFEA113-65.2PXC 3BSE028144R1265: Has its own unique characteristics and may have advantages in protection performance, communication protocol support, or ability to work with a specific controller.

PFEA113-65.3PXC 3BSE028144R1365: May be specially designed in terms of function extension, reliability enhancement, or adaptation to specific peripherals to meet tension control requirements in complex industrial systems.

PFEA113-65.4PXC 3BSE028144R1465: May have its unique functional characteristics in control accuracy, stability or response to special tension changes to adapt to different industrial production requirements.

Complementary products

Signal integration board PFSK152 3BSE018877R1: can be used with PFEA111-20 for centralized signal processing and transmission, integrating signals from multiple sensors or devices for more efficient processing and control of PFEA111-20.

Excitation unit PFVI401 3BSE018732R1: provides excitation current for related tension control equipment, ensuring that sensors and other equipment can work properly and accurately measure tension signals, and PFEA111-20 together constitute a complete tension measurement and control system.

Control unit PFXA401 3BSE024388R1: can cooperate with PFEA111-20 in control logic and function, may be responsible for some more advanced control algorithms or system-level control tasks, and PFEA111-20 together to achieve accurate control of tension and stable operation of the system.

Isolation amplifier PXUB201 3BSC630149R1: used to isolate and amplify the signal to prevent signal interference, improve the quality and stability of the signal, so that PFEA111-20 can receive more accurate tension signals, so as to achieve more accurate control.

Matching unit PFVO142 3BSE023732R1: plays the role of signal matching and conversion to ensure the correct transmission and interaction of signals between different devices, and works with PFEA111-20 to make all parts of the tension control system work better together.

Matching unit PFVO143 3BSE023150R1: Similar to PFVO142, it is also used for signal matching, which may provide more suitable signal matching function for PFEA111-20 in different application scenarios or when connected with different devices.

Operation unit PXAH401 3BSE017235R1: Provides an operation interface and interactive functions for users to set parameters and monitor status of PFEA111-20, improving system usability and operability.

Operation unit PXAH402 3BSE017236R1: similar to the function of PXAH401, but may be different in the layout of the operation interface, the setting of function buttons or the interaction mode with PFEA111-20 to meet the operation habits and needs of different users.

PFVA401 3BSE024389R1: The control unit may undertake different control tasks from PFEA111-20 in the system, or carry out more advanced control function extension on the basis of PFEA111-20, and jointly realize the optimization and management of the tension control process.

PFVA131 3BSE007126R1: The control unit can cooperate with PFEA111-20 in control strategy and system operation, and may be responsible for some key control links or fault protection functions to ensure the safe and stable operation of the tension control system.
