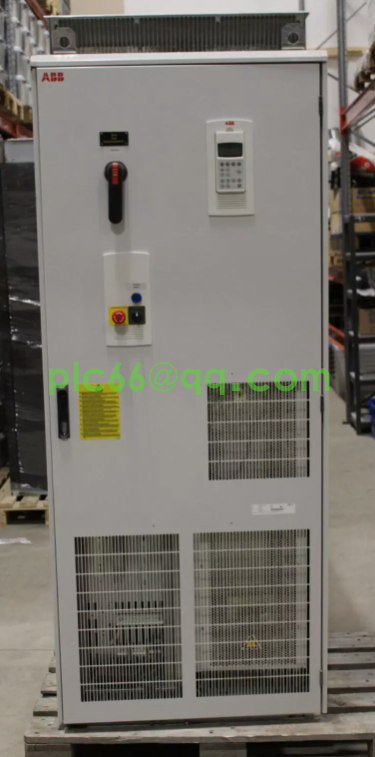

ABB ACS800-07-0610-5 Drive 718A Transducer: Superior Performance for Industrial Applications

The ABB ACS800-07-0610-5 Drive 718A transducer is a remarkable product from ABB, a globally recognized leader in electrical and automation technologies. This transducer, part of the renowned ACS800 series, stands out for its high reliability, advanced features, and versatility, making it an ideal choice for a wide range of industrial applications.

I. Product Overview

• ACS800 Series Heritage: The ACS800 series is a well-established line of variable speed drives known for its exceptional performance and robustness. The ACS800-07-0610-5 Drive 718A inherits the quality and innovation that the series is famous for, ensuring it can operate reliably even in the most challenging industrial environments.
• Series 07 Characteristics: The ACS800-07 type offers a broad power range, with options for both air cooling and water cooling. It can accommodate various voltage levels, including low, medium, and high voltage, providing flexibility to meet different application requirements.

II. Technical Specifications

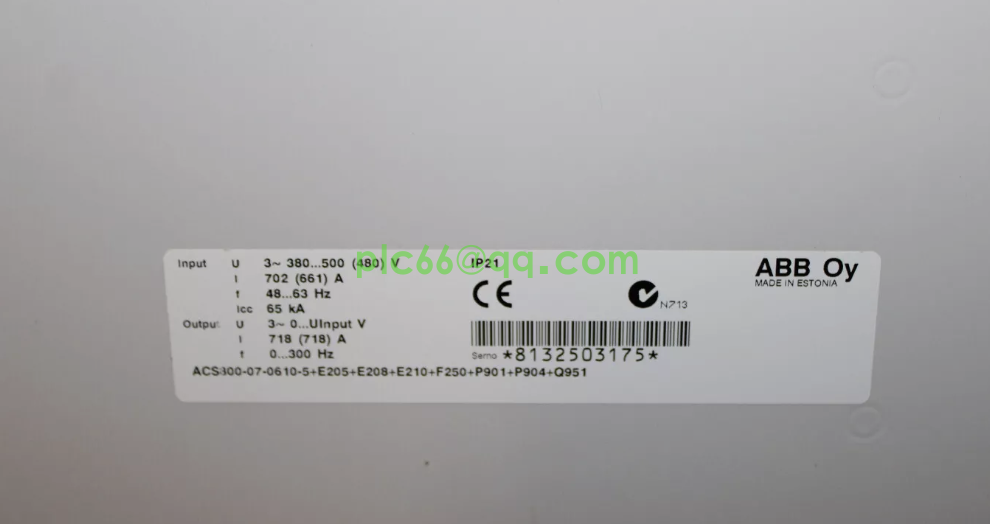

• Current Rating: The "Drive 718A" likely indicates specific current-related characteristics. Typically, in the ACS800-07-0610-5 model, the "0610" often represents parameters related to the rated current. It is estimated that the rated current of this transducer is around 610A, though the "718A" might refer to peak current capacity or another related specification.
• Voltage Compatibility: Designed to work with three-phase power supplies, this transducer is compatible with a range of common voltage levels, such as 380V, 400V, 415V, 460V, 480V, and 500V. This wide voltage range makes it suitable for use in different regions and industrial setups.
• Power Capacity: Depending on the voltage level, it can drive motors of significant power. In a typical configuration, it can handle motor powers in the hundreds of kilowatts, enabling it to meet the demands of large industrial machinery.

• Overload Capability: Like other drives in the ACS800 series, this transducer has a certain overload capacity. It can typically withstand a load exceeding the rated current by a specific percentage for a short period. For example, it might be able to handle 1.1 times the rated current for one minute and then return to normal operation within five minutes.

III. Functional Features

• Control Modes: At the core of this drive is ABB's patented Direct Torque Control (DTC) technology. DTC enables direct control of the motor's torque and flux changes without the need for an SPWM signal generator to control frequency and voltage. By eliminating complex vector calculations, it provides a rapid response to torque changes. Additionally, it also supports the V/F scalar control mode, allowing users to select the appropriate control method based on their specific application needs through parameter settings.
• Protection Functions: Equipped with a comprehensive set of protection features, this transducer ensures the safety of both itself and the connected motor. It includes overcurrent protection, overvoltage protection, overheating protection, and ground fault protection, among others. These safeguards effectively shield against various potential faults, minimizing the risk of equipment damage and ensuring continuous operation.
• Input and Output Characteristics: It features a rich and flexibly programmable set of I/O interfaces, making it easy to connect with external devices and enable various control functions. The input interfaces are usually equipped with optoelectronic isolation, enhancing its immunity to electrical interference and ensuring stable operation.

• Filtering Capabilities: The built-in harmonic filter reactors, du/dt output filters, and common-mode filters play a crucial role in reducing harmonic pollution to the power grid. They also protect the motor from high voltage change rates and common-mode voltages, prolonging the lifespan of the motor and improving the overall system performance.

IV. Application Areas

• Industrial Sector: This transducer is widely used across various industrial applications. It is suitable for controlling the speed of devices such as fans, pumps, compressors, conveyor belts, and mixers. By precisely adjusting the motor speed according to the actual working conditions, it helps achieve energy savings and optimize the production process.
• Specialized Applications: In scenarios where high precision in speed regulation and excellent dynamic performance are required, such as in elevators, cranes, textile machinery, and paper machinery, the ACS800-07-0610-5 Drive 718A transducer delivers outstanding performance, meeting the stringent requirements of these applications.
