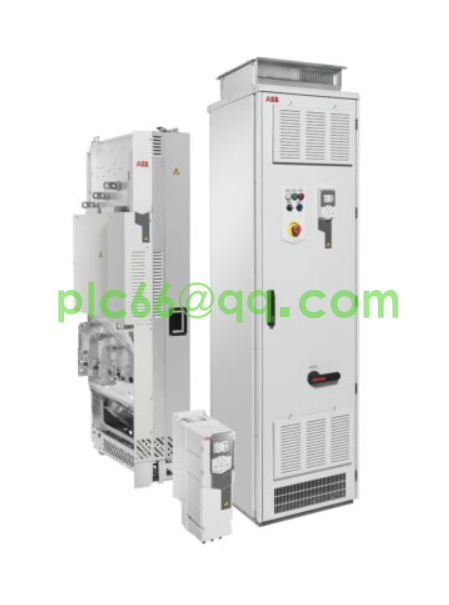

ACS580MV-PEBB-R3 Inverter power unit Power module: a new benchmark for industrial motion control

In the era of rapid development of industrial automation, accurate, efficient and stable motion control plays a vital role in optimizing production processes and improving product quality. With its advanced technology and excellent performance, the ACS580MV-PEBB-R3 motion module controller stands out in many industrial scenarios and has become a new benchmark in the field of industrial motion control.

The ACS580MV-PEBB-R3 uses advanced direct torque control (DTC) technology to adjust the motor speed with extreme precision. Speed control accuracy of up to ±0.05%, in the equipment start, run and stop process, can achieve extremely smooth acceleration and deceleration, effectively avoid the impact of speed change on the mechanical structure of the equipment, to ensure the long-term stable operation of the equipment. For example, in textile machinery, according to different textile process requirements, the controller can precisely adjust the motor speed, ensure the consistency of yarn quality, and improve production efficiency.

With excellent multi-axis synchronous control ability, it can coordinate multiple motor axes to work together at the same time to achieve complex motion trajectory planning. In the automatic machining center, the tool can be accurately controlled along the complex space curve for milling, drilling and other operations, the movement error between the axes can be controlled within a very small range, the processing accuracy can reach ±0.01mm, greatly meeting the demand for complex parts high-precision processing, improve product quality and production efficiency.

In order to facilitate user operation, the controller is equipped with intelligent programming system and convenient teaching function. The operator can not only input precise motion instructions through traditional programming, but also use the teaching function to manually guide the robot arm to complete specific actions, and the controller automatically records and generates corresponding programs. This mode of operation greatly reduces the programming threshold, and even non-professional programmers can quickly get started, quickly complete the setting of complex motion tasks, and improve production efficiency, especially for industrial scenarios where production tasks are frequently changed.

Support Modbus, Profinet, EtherCAT and other mainstream industrial communication protocols, and equipped with RS-485, Ethernet and other communication interfaces, convenient and host computer, PLC and other intelligent devices for efficient data interaction. Through these communication interfaces, the operator can monitor the operating status of the equipment in real time, such as motor speed, current, temperature and other parameters, and remotely adjust the operating parameters of the controller according to actual needs, so as to realize the intelligent management of the entire production system and improve the automation level and response speed of the production process.

In the field of automobile manufacturing, ACS580MV-PEBB-R3 plays an important role. In the processing process after the casting of auto parts, it can accurately control the movement of CNC machine tools to ensure the processing accuracy of parts and meet the high-precision manufacturing requirements of auto parts. In the automobile final assembly line, it is used to control the movement of automatic assembly robots, realize the accurate positioning and assembly of parts, improve the accuracy and consistency of vehicle assembly, and help the efficient and high-quality completion of automobile production.

For the electronic manufacturing industry, especially semiconductor chip manufacturing and electronic product assembly, the motion control precision is very high. The controller can be used to control the motion of lithography machine and etcher in chip manufacturing equipment to ensure high precision lithography and etch process in chip manufacturing. In the assembly line of electronic products, it can accurately control the movement of SMT mounters, insert machines and other equipment, achieve rapid and accurate installation and insertion of electronic components, improve the production efficiency and quality of electronic products, and meet the production needs of the electronic manufacturing industry for high precision and high speed.

In the automated logistics warehousing system, ACS580MV-PEBB-R3 is used to control the movement of equipment such as stackers and AGVs (automatic guided vehicles). Under its control, the stacker can quickly and accurately store the goods in or out of the shelf, improving the utilization rate of storage space and the efficiency of goods in and out of the storage. The AGV drives accurately according to the preset path, realizes the automatic transportation of materials, reduces manual intervention, improves the accuracy and efficiency of logistics operation, and ensures the efficient and stable operation of the logistics warehousing system.

In the field of packaging machinery, it can precisely control the various moving parts of packaging equipment, such as feeding mechanism, sealing mechanism, cutting mechanism, etc. Through precise speed control and multi-axis collaborative control, to ensure the accurate delivery of packaging materials, tight sealing and product cutting accuracy standards, improve packaging efficiency and quality. Whether it is food packaging, pharmaceutical packaging or daily use packaging, it can meet the needs of different packaging processes and provide reliable motion control solutions for the packaging industry.

The controller is suitable for three-phase AC 380V-480V (±10%) industry standard voltage, can be stable operation in common industrial power supply environment, adapt to the power supply requirements of different regions and occasions, to provide a solid power guarantee for the stable operation of equipment.
