Product overview

The 3500/40M 140734-01 is an industrial automation device manufactured and sold by several suppliers. It is mainly used in a variety of industrial control applications, including but not limited to petrochemical, hydropower plants, steel mills and printing plants.

Technical specifications and features

3500/40M 140734-01 has some of the following common functions and features:

• Programmable Logic Control (PLC) : Used to implement complex control logic and automation tasks.

• Communication capability: Supports multiple communication protocols for data exchange with other devices and systems.

• Modular design: allows users to select and install different functional modules according to their needs.

• High reliability and stability: suitable for a variety of harsh industrial environments.

Application field

3500/40M 140734-01 can be used in a variety of industrial applications, including but not limited to:

• Petrochemicals: used to monitor and control various parameters in chemical processes.

• Hydropower plants: Used to manage and optimize the operation of hydropower plants.

• Steel mill: used to control various equipment and processes in the steel production process.

• Printing plant: Used to automate and optimize printing production lines.

The Bentley Nevada 3500/40M is a powerful vibration monitoring device, which is described below:

Functional characteristics

Multi-channel signal input: It is a 4-channel monitor that can accept 1 to 4 signals from Bentley Nevada proximity sensors, and can monitor multiple measurement points at the same time, providing rich data for a comprehensive understanding of equipment operating status.

Signal processing and measurement: With advanced signal conditioning technology, the input signal can be processed, providing a variety of vibration and position measurement parameters, such as radial vibration, thrust position, differential expansion, eccentricity, rotor axial position and speed measurement, to help users accurately grasp the mechanical operation of the equipment.

User programmable alarm: The processed signal can be compared with the alarm value set by the user through the 3500 rack configuration software. The user can set the alarm threshold for each channel independently according to the actual demand. When the measurement parameter exceeds the set value, the alarm signal can be sent in time to remind the operator to take measures to prevent the further expansion of the equipment failure.

Flexible channel configuration: Each channel can be programmed with 3500 rack configuration software, and channels are programmed in pairs to perform up to two functions simultaneously, such as channels 1 and 2 performing one function and channels 3 and 4 performing another or the same function, providing a high degree of flexibility and customization for different monitoring needs.

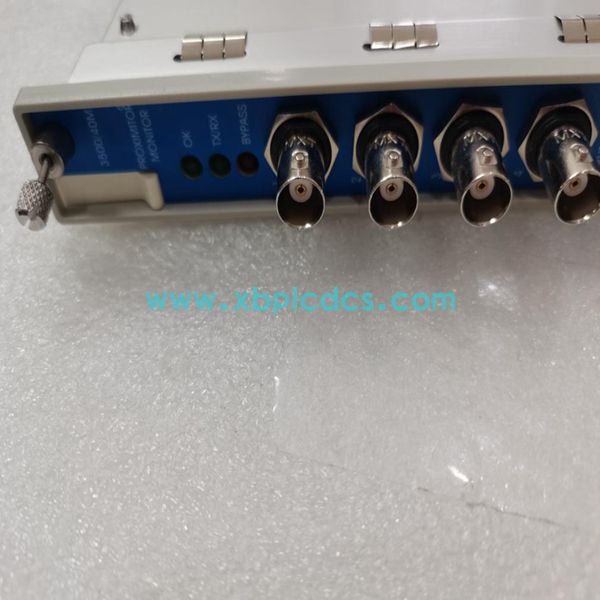

Status indicator: LED indicators, including OK, TX/RX, and BYPASS, are provided on the front panel to visually display the module operating status, data transmission status, and bypass status, facilitating users to quickly determine the device running status.

Technical parameter

Power consumption: Typical power consumption is 7 watts.

Power supply: -24V DC power supply.

Input impedance: Standard I/O is 10kΩ.

Accuracy: Direct/gap / 1X/2X is ±0.33% F.S., Smax is ±5% Max.

Output impedance: 550Ω.

Operating temperature: -30 °C to + 65°C when using internal/external terminal I/O modules; 0°C to + 65°C when using an internal barrier I/O module (internal terminal).

Weight: 0.91kg.

Dimensions: 9.50 inches x 0.96 inches x 9.52 inches.

Application scenario

Power industry: Used for turbine, generator and other rotating equipment vibration monitoring, timely detection of equipment vibration anomalies, prevent failures, to ensure the stable operation of power production.

Petrochemical industry: It can monitor key equipment such as compressors and pumps to ensure the safe operation of equipment under complex working conditions and avoid production interruption and safety accidents caused by equipment failure.

Metallurgical industry: applied in rolling mills, fans and other equipment, through the monitoring of vibration and position parameters, optimize the operation of equipment, improve production efficiency and product quality.

Other industrial fields: Suitable for a variety of occasions requiring high-precision vibration monitoring and protection of rotating machinery, such as papermaking, cement, mining and other industries, to provide strong support for the reliable operation and maintenance of equipment.

Bentley Nevada 3500/22 models are mainly related to the following:

3500/22M: It is an upgraded or improved model of the 3500/22 with features similar to the 3500/22, such as the 3500/22M Transient Data Interface (TDI), which is the interface between the 3500 monitoring System and the Bentley Nevada System 1TM machine management software. Common models are 3500/22-01-000 and 3500/22-01-001.

3500/20: Frame Interface Module (RIM), which supports Bentley Nevada's proprietary protocol for frame configuration and retrieving information from the unit, with RS-232 serial interface on the front panel and RS-232/RS-422 serial interface on the rear I/O module.

3500/15: Power module, AC and DC two forms, can be compatible with voltage sources around the world, can use a single power supply or redundant dual power supply, to provide power support for other modules of the 3500 system.

3500/25: Key phase module, optional module to provide key phase information to determine the specific position of rotating parts in rotating machinery monitoring, to provide phase reference for other monitor modules.

3500/32M, 3500/33M, 3500/34: relay module, among which 3500/34 is triple redundant relay module, used to realize the alarm and protection function of the system, when the monitored parameter exceeds the set threshold, it can trigger the corresponding relay action, output signal to control the external equipment.

3500/42M, 3500/45, 3500/53, 3500/50: Monitor module, which can monitor and analyze the vibration, displacement, speed and other parameters of rotating machinery.

3500/92, 3500/90: Communication gateway module, which is used to realize the communication between the 3500 system and other systems or devices, supports a variety of communication protocols, and can transmit the data of the 3500 system to the host computer or other control systems
