The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet. The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software. Refer to the Compatibility section at the end of this document for more information. Static data capture capability is standard with the TDI. However, using an optional Channel Enabling Disk will allow the TDI to capture dynamic and high-resolution transient data as well. The TDI incorporates the communication processor function within the 3500 rack. Although the TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitor system for automatic machinery protection. Every 3500 rack requires one TDI or RIM, which always occupies Slot 1 (next to the power supplies).

The Bently 3500/22M is an important module in the Bently Nevada 3500 Series mechanical monitoring system. Here is a detailed description of it:

3500-22M Transient Data Interface Module Datasheet

1. Basic functions:

• Data communication interface: The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and Bentley Nevada System1™ machine management software. It combines the functions of a 3500/20 Frame interface module (RIM) and a communications processor to continuously capture steady-state and transient waveform data and transmit the data to the host computer software over Ethernet.

• Monitoring data transmission: The various mechanical operation data monitored by the 3500 system, such as vibration, displacement, speed and other information, can be accurately and timely transmitted to the upper computer system or other data processing equipment, so that the operator can carry out remote monitoring, analysis and diagnosis.

2. Features and advantages:

• High integration: A variety of communication and data processing functions are integrated in one module, reducing the complexity of the system and the number of hardware devices, and improving the reliability and stability of the system.

• Strong data acquisition ability: it can collect transient or dynamic data, which provides strong support for analyzing the transient behavior of machinery and fault diagnosis. And it has standard static data collection function to meet the requirements of routine monitoring.

• Good compatibility: As a module of the 3500 series, it can be well compatible with other modules of the 3500 system (such as 3500/42m vibration monitoring module, 3500/40m displacement monitoring module, etc.) to form a complete mechanical monitoring system.

• Easy installation and maintenance: The module can be installed simply by plugging into the corresponding slot of the 3500 system frame. In addition, during the operation of the system, the status of the module can be monitored in real time through the monitoring function of the system, which is convenient for maintenance personnel to carry out troubleshooting and maintenance.

3. Application scenario:

• Large rotating machinery monitoring: widely used in large steam turbines, compressors, fans, pumps and other rotating machinery online monitoring and fault diagnosis. Through real-time monitoring of the vibration, displacement, speed and other parameters of the equipment, the abnormal situation of the equipment is found in time, and the fault trend of the equipment is predicted, which provides a basis for the maintenance and overhaul of the equipment.

• Industrial automation systems: In industrial automation production processes, the 3500/22M module can be used to integrate mechanical monitoring data with automated control systems to achieve comprehensive monitoring and optimization of the production process. For example, in the automatic production line of petrochemical, electric power, metallurgy and other industries, the module can feed the operating status information of mechanical equipment to the automatic control system in order to adjust and control the production process.

4.


Email:  plc66@qq.com

Phone: +86 18059884790(WHATSAPP/WeChat)

Sales:LIMING

The price is subject to confirmation by the contact person LI MING (manager).

Product: Brand new original packaging

Payment method: 100% telegraphic transfer. Conditions can be negotiated before shipment of inventory goods!

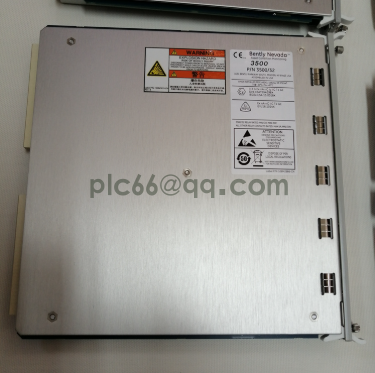

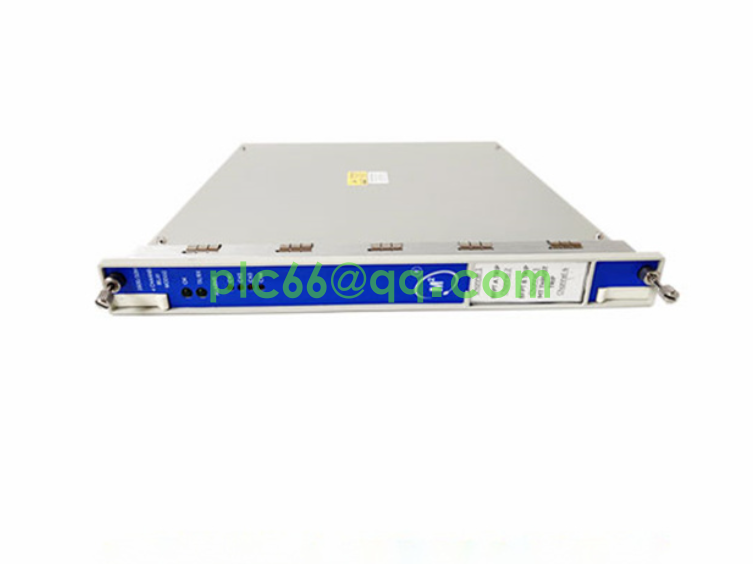

3500-22M Transient Data Interface Module Datasheet

If you have any downtime spare parts that cannot be found, please feel free to call or contact me via email at any time.

If there are any issues that the product cannot solve, please contact me.

Many products have not been listed yet. Please contact us for more products！！！

If there is any inconsistency between the product model and the displayed picture, the model shall prevail.

Please contact us for specific product pictures, and we will arrange for photos to be taken in the warehouse for confirmation

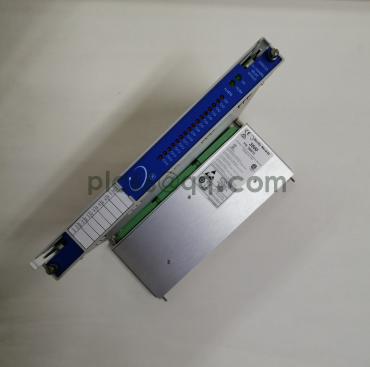

3500-22M Transient Data Interface Module Datasheet
