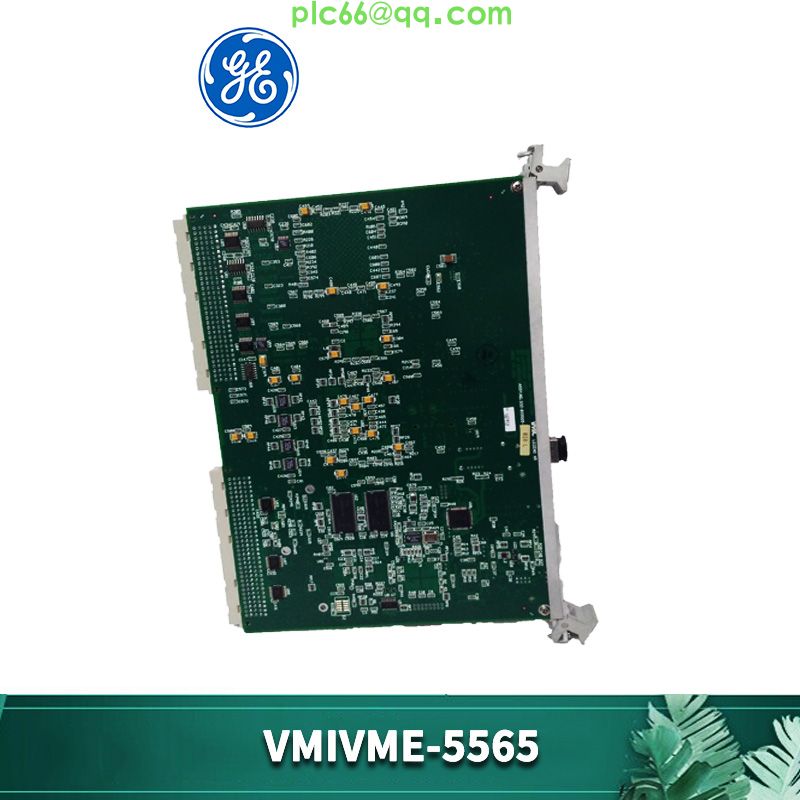

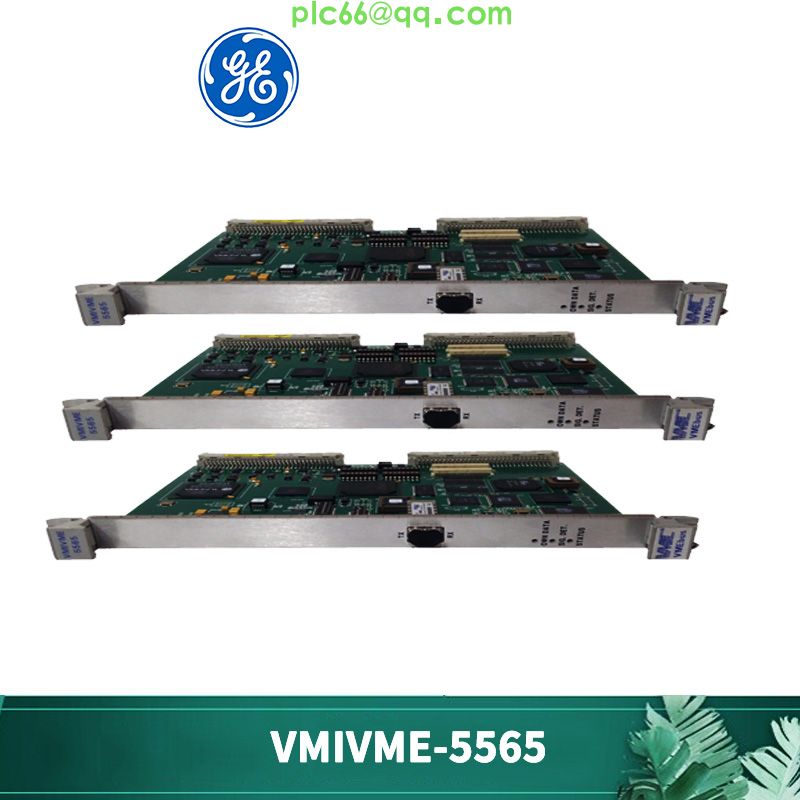

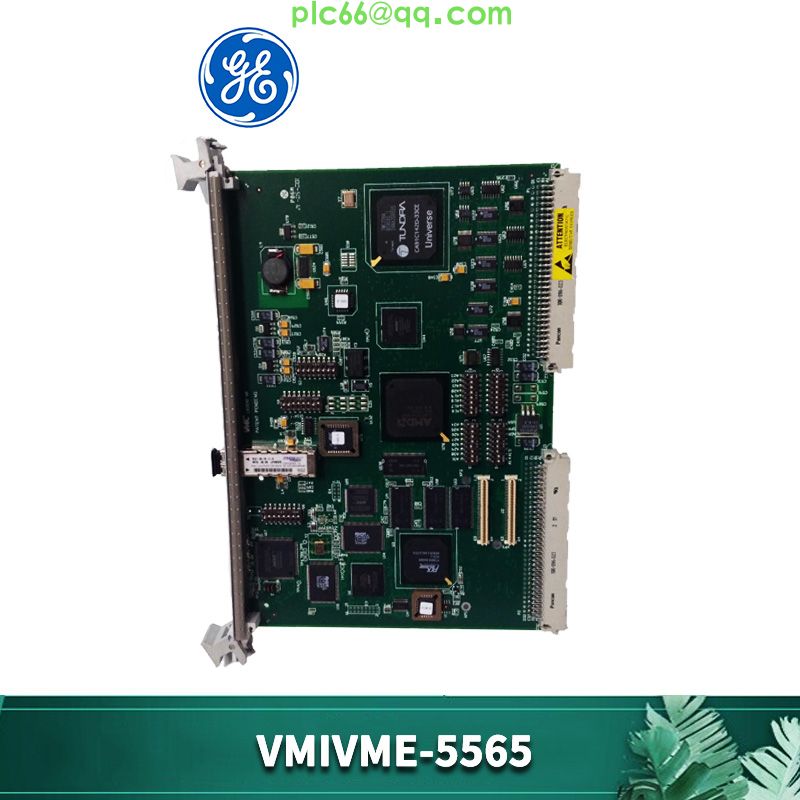

VMIVME-5565 Industrial control module product types and functions

Reflective memory module: The VMIVME-5565 is essentially a reflective memory module that enables data sharing between multiple system nodes in real-time distributed systems.

Data transmission advantages: With high bandwidth data transmission capability, data real-time synchronization through optical fiber network, transmission rate up to 2.1Gbps, support multiple nodes parallel data sharing, suitable for large-scale distributed systems.

Low latency feature: can ensure real-time data exchange between systems, typical latency is a few microseconds level, can eliminate the impact of delay on distributed system control and monitoring

VMIVME-5565 Industrial control module hardware features

Storage capacity: There is usually 64MB/128MB of storage capacity, depending on the model.

Communication interface: Equipped with optical fiber interface for high-speed data transmission.

Bus type: Adopts standard VME bus architecture, with good compatibility and extensibility.

Working environment adaptability: The operating temperature range is generally -20 °C to 85°C, some can be in -40 °C to + 85°C, able to operate stably in harsh environments such as high temperature, vibration and electromagnetic interference

VMIVME-5565 Industrial control module application field 3

Industrial automation: Data sharing and synchronization for distributed control systems that enable efficient collaboration of multiple nodes in a production line.

Power system: Support real-time monitoring and control of power stations, substations, etc.

Aerospace and Military: Can be used for data synchronization in real-time simulation systems and sensor data sharing and processing in military systems.

Medical equipment: It can support real-time sharing of large-scale data between multiple devices.

Test and simulation: Provides low latency, high bandwidth data synchronization in high performance computing simulations.

Related series models

The same series of products are VMIPCI-5565, VMIPMC-5565. The VMIPCI-5565 is a PCI member of this family, and the VMIPMC-5565 is a PCI sandwich card member that is compatible with the VMIVME-5565 network and can be integrated into the network in any combination
