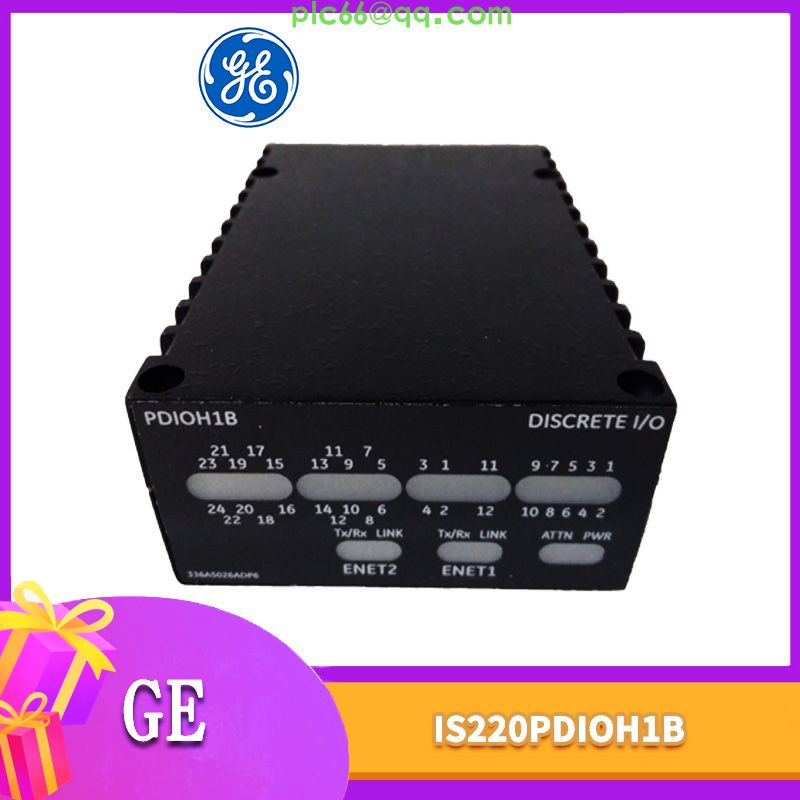

The IS220PDIOH1B is a discrete input/output (I/O) module in the General Electric (GE) Mark VI series. Here are the details:

Basic parameter

Rated voltage: Nominal voltage is 28.0V, minimum voltage is 27.4V, contact output voltage is 32.0VDC.

Dimensions: Width 4.5 inches x Height 3.5 inches x depth 2.25 inches.

Weight: Less than 2 pounds

Features of IS220PDIOH1B

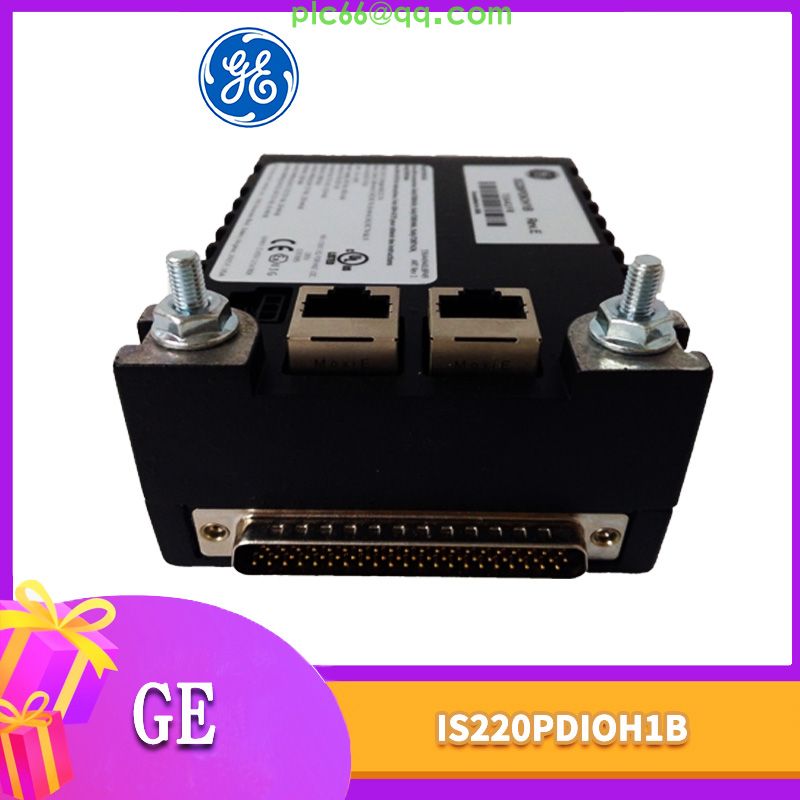

Communication function: Equipped with two Ethernet ports, it can easily communicate and interact with other devices or systems to achieve remote monitoring and control.

Status indicator: The front panel is equipped with an LED indicator to display the Ethernet port status, power status and relay connection status, etc., so that users can intuitively understand the working status of the module.

High-precision control: Using advanced control algorithms and sensor technology, it can achieve accurate control of equipment such as gas turbines to ensure stable operation and efficient output of the system.

Security protection and diagnosis: With the security protection function, measures can be taken in time when the system is abnormal to prevent accidents. It also has a fault diagnosis function, which can monitor the operating status of the system in real time, and discover and report potential faults in time

Is220ph1b Application scenario

Power field: In power plants, especially gas turbine power plants, it is used to control and monitor the operating status of gas turbines, such as start-stop control, speed regulation, temperature and pressure monitoring, etc., to ensure the stability and efficiency of the power generation process.

Industrial automation: can be applied to a variety of industrial automation production lines, connected sensors, actuators, controllers and other equipment, to achieve automatic control and monitoring of the production process, such as control of the operation of production equipment, material transportation, quality testing and other links.

Other industrial scenarios: In petrochemical, metallurgy, paper and other industries, control and monitor all kinds of industrial equipment and production processes, such as temperature and pressure control of chemical reactor, heating control of metallurgical furnace, etc

GE IS220 series has many models, here are some common models for you:

Analog input/output class

IS220PAICH1A: A gas turbine module commonly used in power plants, industrial production facilities, and other energy-related applications to help convert high-temperature and high-pressure gases from fuel combustion into mechanical energy in gas turbine systems.

IS220PAICH1B: The Mark VIe series GE analog I/O kit can handle up to 10 analog inputs and has two 0-20mA current loop outputs that can be used as an electrical interface between an I/O Ethernet network and the analog input terminal board.

IS220PAICH2A: Equipped with 32KB of user memory, 4K I/O, 8 racks and 0.22msec/K logic execution, compatible with advanced modules such as Ethernet, various bus modules and controls, suitable for complex motion control, mining, water treatment and many other industrial applications.

Digital quantity input/output class

IS220PDIOH1A: digital input and output module, can be connected to a variety of digital signal equipment, to achieve the monitoring and control of digital signals in industrial processes.

IS220PDIOH1B: Used in turbine control systems to monitor and adjust the operating parameters of turbines in turbine control and automation systems in the energy industry, oil and gas industry, industrial production, etc.

IS220PDOAH1A: Solid state relay module with four independent channels, can control four loads at the same time, provide overload, overcurrent and overtemperature protection, input voltage range DC 12-48V, output voltage range 0-24V.

Other types

IS220UCSAH1A: The GE PAMC Acoustic monitoring processor is designed to monitor and process acoustic signals in a variety of applications, with high performance acoustic signal processing capabilities and advanced algorithms for precise detection and classification of acoustic events for industrial environments.

IS220PPRFH1B: General Electric GE module that implements specific power system control and signal processing functions for use in power and industrial automation related fields
