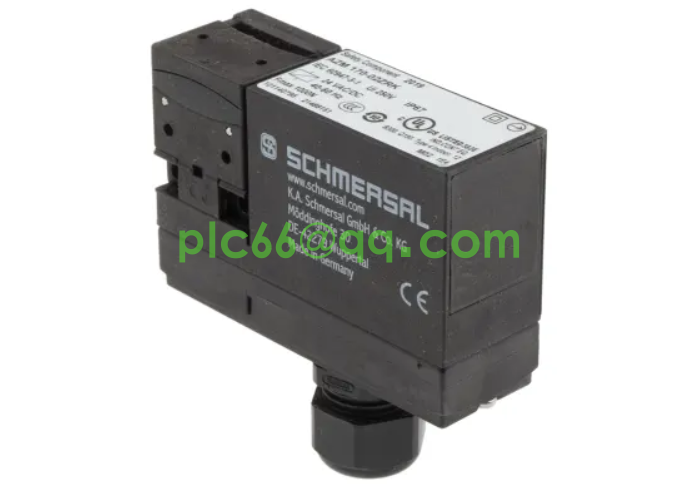

General Introduction

Technical Specifications

• Electrical Specifications2
• Rated Control Voltage: 24V AC/DC
• Contact Voltage: AC max 230V, DC max 24V
• Contact Current: AC max 4A, DC max 2.5A
• Switching Voltage: Max 230V
• Mechanical Specifications
• Overall Dimensions: 90mm x 84mm x 30mm145
• Cable Entry: M20 x 1.5145
• Mechanical Life: At least 1 million operations
• Holding Force: Up to 1300N
• Latching Force: 30N
• Environmental Specifications
• Degree of Protection: IP6723
• Ambient Temperature: -25°C to +60°C4

Functional Features

• Interlock Protection3: It prevents incorrect locking, ensuring that the safety guard can only be opened or closed under the correct conditions.
• Power-to-Unlock Function: The lock can only be released when powered on, preventing accidental unlocking during a power outage.
• Manual Release: There is a manual release mechanism on the side. In an emergency or when the power is off, it can be manually unlocked with an M5 triangular key.
• Double Insulation14: With double insulation design, it provides better electrical safety and protection.

Applications

• Industrial Machinery: It is widely used in industrial machinery such as robots, injection molding machines, and machine tools. It ensures that the equipment can only start when the safety interlock conditions are met, and stops the equipment in a timely manner when a dangerous situation occurs.
• Safety Guards: Suitable for various safety guards, including hinged doors, sliding doors and removable guards3. It realizes interlocking control to prevent unauthorized access to dangerous areas.
• Other Scenarios: It can also be applied in other occasions requiring safety interlock control, such as elevator doors and access control systems in power distribution rooms, improving the safety and reliability of the system.
