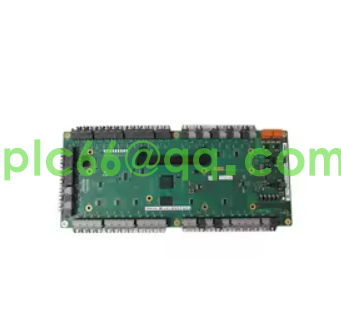

UFC921A101 3BHB024855R0101 Automatic control unit Provides basic information

Product type: Automatic control parts.

Brand: ABB.

Technical parameter

Analog input/output: 8 analog input channels and 4 analog output channels. The analog input range is 0-10V, 0-20mA, 4-20mA; Analog output ranges are 0-10V, 0-20mA, 4-20mA.

Digital input/output: 16 digital input channels, 8 digital output channels. Both the digital input and output voltage ranges are 24V DC.

Communication protocols: Support Modbus, Profibus, Profinet and other communication protocols.

Size Weight: 170mm×100mm×20mm, weight 0.3kg.

Working environment: Operating temperature range -25 ℃ to + 70℃, storage temperature range -40 ℃ to + 85℃, humidity range 5% to 95% RH (non-condensing).

Functional characteristics

UFC921A101 3BHB024855R0101 Automatic control unit Rich communication interfaces: Support Ethernet, RS-232, RS-485, CAN bus and other communication interfaces, facilitate data exchange and communication with other devices, sensors and control systems, to achieve seamless integration of the system.

Real-time control: Real-time control features ensure immediate response to equipment and systems, which is essential for industrial automation scenarios with high real-time requirements.

Programming customization: Usually supports programming and customization functions to meet different application requirements, supports a variety of programming languages and development tools, and facilitates users to carry out secondary development and function expansion.

Data store: Provides the data store function to save important data and configuration files on local or external storage devices for easy data backup, recovery, and management.

Security: It generally has security protection functions, such as access control, data encryption, and firewall functions, to ensure the security of data and systems and prevent illegal access and data leakage.

Application field

Industrial automation: In various industrial production lines, it can be used to control the operation of production equipment, monitor various parameters in the production process, and achieve automated production and quality control.

Machine control: For example, in the robot control system, it can realize the action control of the robot, path planning and collaborative work with other equipment.

Energy management: In the fields of power system and energy distribution, it can be used to monitor and control the production, transmission and distribution process of energy to achieve optimal management and efficient use of energy.

Process control: In chemical, petroleum, water treatment and other process industries, temperature, pressure, flow and other process parameters can be accurately controlled to ensure the stability and safety of the production process.

Gas turbine control: It can monitor the speed, temperature, pressure and other parameters of the gas turbine to achieve accurate control and fast response, and also detect anomalies to prevent equipment damage
