Product Description

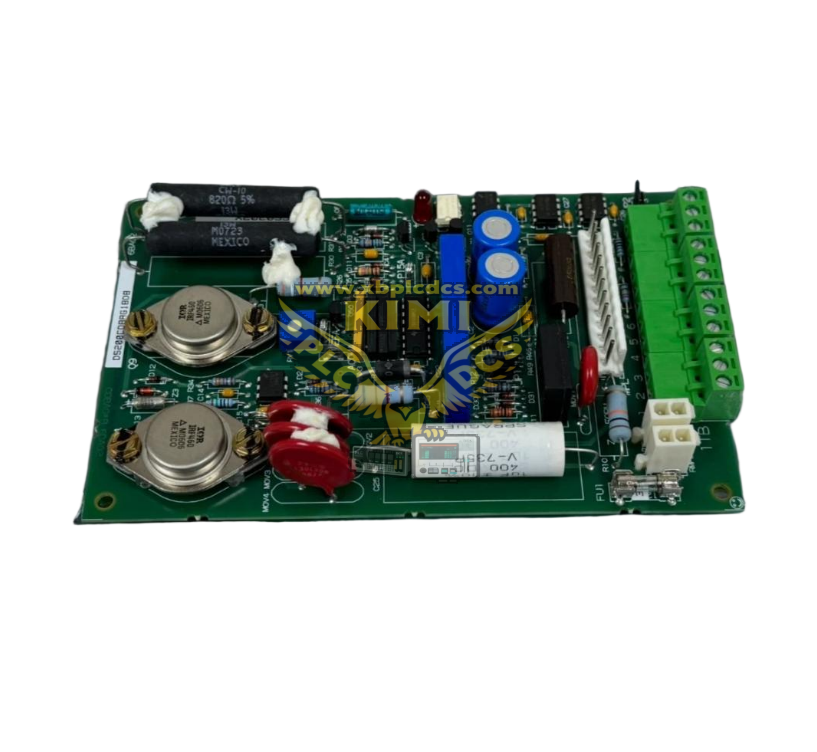

The GE Contactor Driver Board DS200CDBAG1BDB opens and closes a contactor.

The DS200CDBAG1BDB features two jumpers that are accessible. One is reserved for use by the factory personnel on the assembly line for testing the board. From the factory the  jumper is placed over pins 1 and 2. Do not move the jumper to pins 2 and 3. In some cases you might have multiple contactor driver boards installed in the drive. To enable coordinated operation between the boards, move the jumper to pins 2 and 3. You must provide voltage to connectors 1TB-9 and 1TB-10 on the board to provide the power for coordinated operation.

Connectors 1TB-9 and 1TB-10 are included in connector 1TB on the board. All transmitted signals, received signals, and power supply is through the 1TB connector. Three cables bundled together supply the power and signals. The three cables connect to 1TB through three connectors. 1TB is divided into four sections so one connector straddles two sections. For normal operation, that is not coordinated between multiple boards, keep the jumper in positions 1 and 2. This is the position installed at the factory.

One fuse connector is on the board and it is user replaceable. The board requires a 4 amp fuse, 125VAC at 2AG.  If the fuse blows and you replace it, make sure you replace it with an identical fuse. You can easily use your hand to remove the blown fuse and install the replacement. However, you must remove all power to the drive before attempting the procedure and touching the board.
