Product Description

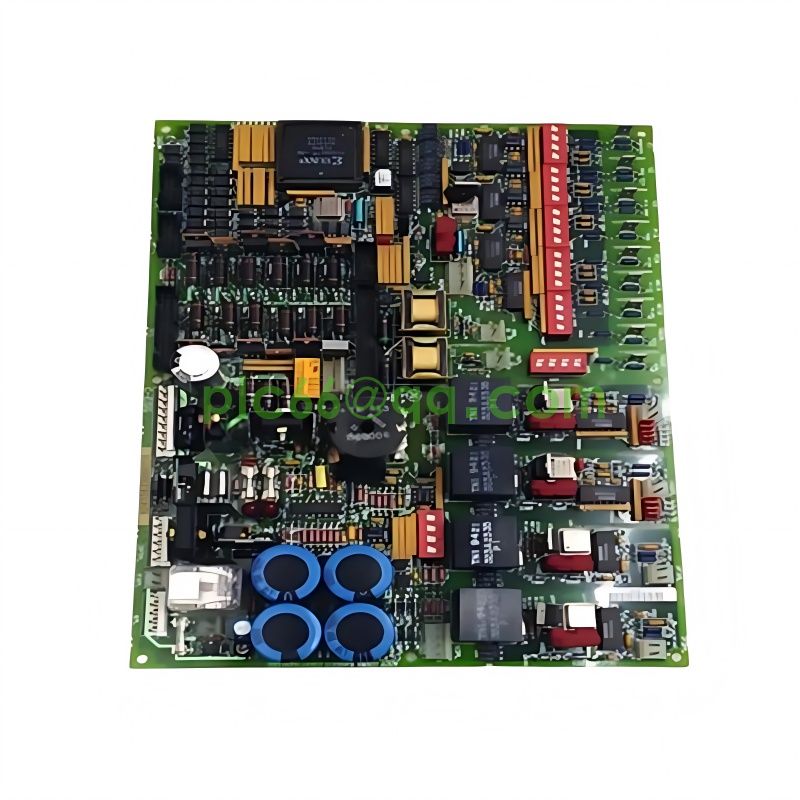

General Electric’s DS200DCFBG1AAA is a power supply board developed for the Mark V board series. Supplies from this board provide control level power to the unit as well as to the enclosure fan. Drives from the AC2000, CB2000, DC2000, FC2000, and ME2000 can use this board. Members of the EX2000 series can also use this board, but this series interacts differently with the board than drives do. This power supply card sources inputs from the control power transformer rated between 38 and 115 VAC. Depending upon inputted voltages, frequencies for the board can range from 0 to 500 kHz.

A number of onboard features allow DS200DCFBG1AAA to provide exceptional user experiences. Circuits found on the board include AC/DC monitoring, driver, motor field power, and control level supply circuits. Configurable system options can be set using the twelve jumpers and seven DIP switches found on board. Two LED status indicators and one neon indicator is featured on the board. Diagnostics regarding various fuse switches on the board are displayed using these indicators. Checking voltage levels on the board is simple using one of the five integrated test points. Protecting the power supply from interruptions is built into the three protective fuses found on the card.

The board as well as the drive include installation and storage parameters that must be followed to ensure both operate properly. DS200DCFBG1AAA’s manual and datasheet include complete installation and wiring guidelines for the board. General Electric, the manufacturer, was the original provider of technical support for this board.

Our trusted and friendly sales staff at AX Control is ready to help with all of your DS200DCFBG1AAA and automation needs. Please contact our office by phone or email to receive current prices on all parts and repairs.
