- Product ID:1394C-SJT22-A servo controller
- Place of Origin:USA
- Warehouse: Spot
- Warranty: 365 days
- Quality: Original module
- Condition: New / Used
- Shipping method: Courier delivery
- Contact person: Linda
- Contact number: +86 18059884790
- WeChat:18059884790
- E-mail: plc66@qq.com

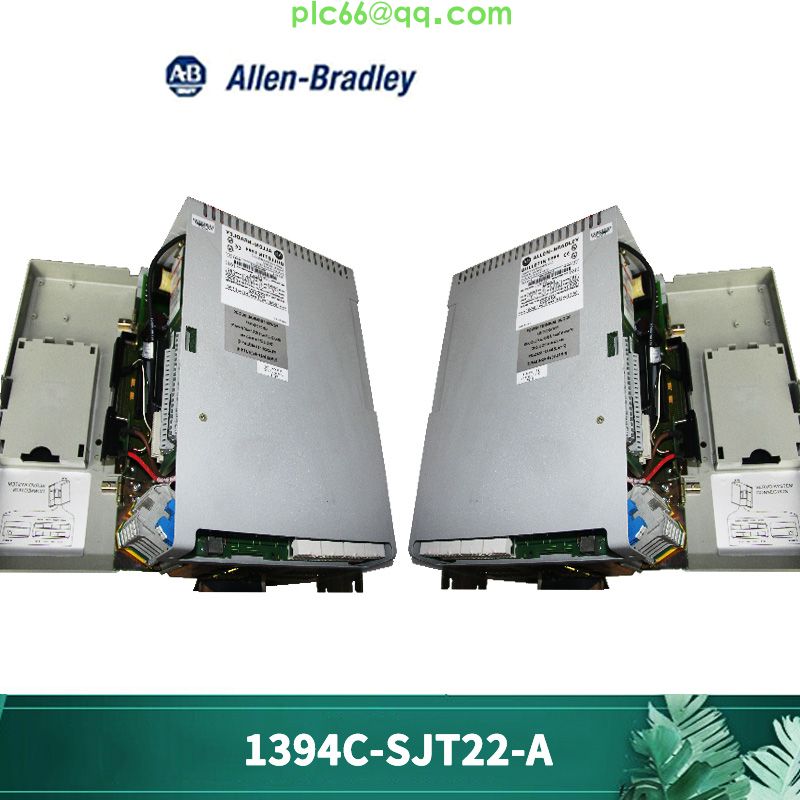

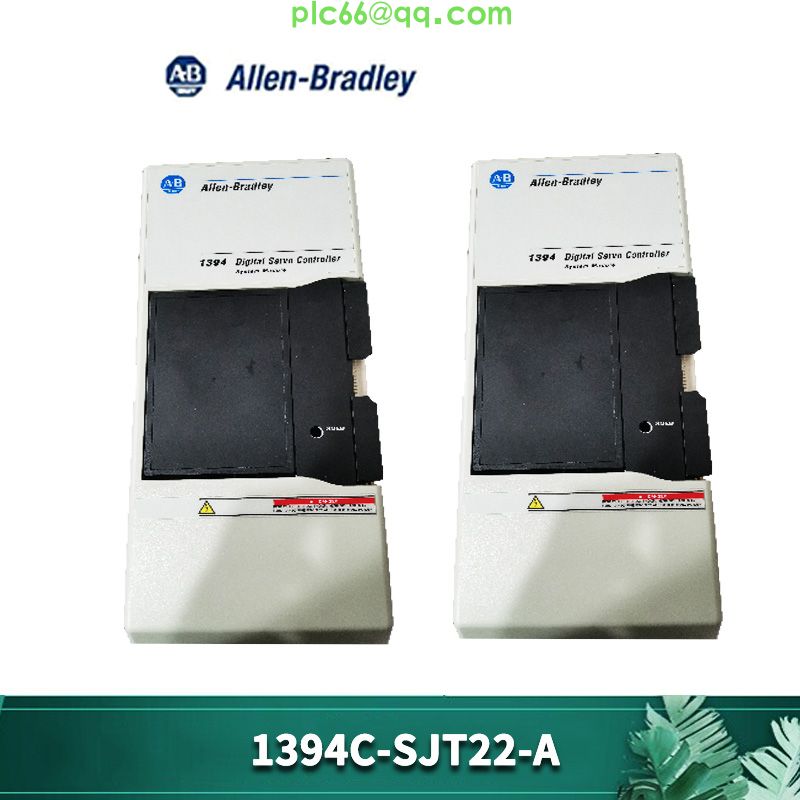

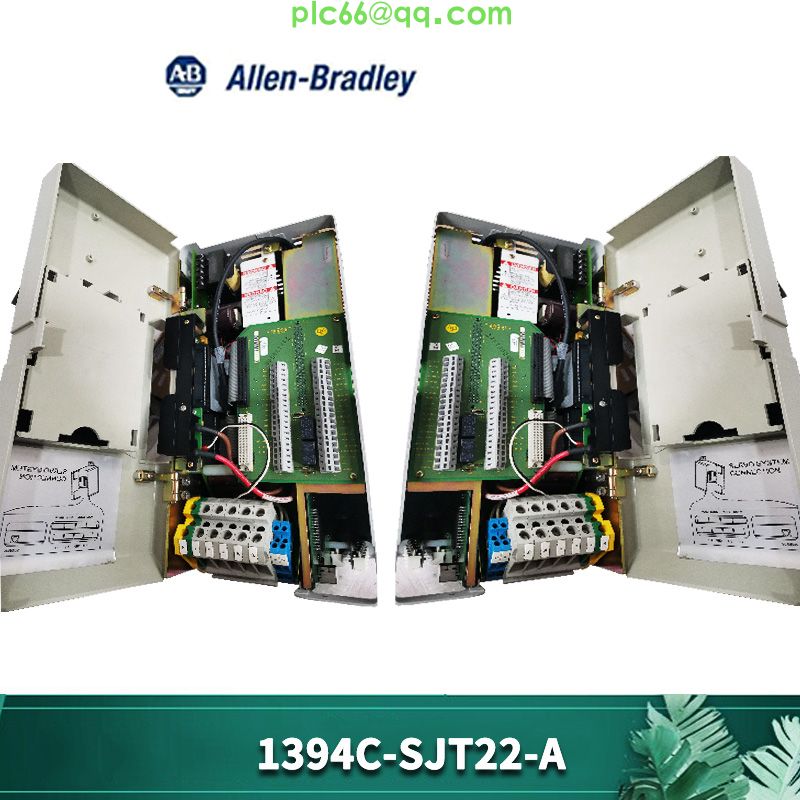

The 1394C-SJT22-A servo controller is A servo controller from Allen-Bradley (Rockwell Automation). The details are as follows:
Functional characteristics
Multi-axis control: Supports up to four axes and works as a speed or torque controller.
Analog interface: Equipped with analog module function and ±10 volt DC analog interface.
Man-machine interaction: Comes with Bulletin 1201 man-machine interface module, allowing automatic tuning and fast startup.
Diagnostic protection: Diagnostic features, including current monitor, thermal overload detection and feedback signal monitor, electrical noise protection and improved ground terminal with status indicators for the system and shaft modules
1394C-SJT22-A servo controller Electrical parameters
Power supply range: Operating at 324 to 528 volts, 50 to 60 Hertz AC power, power input with 24 volts AC power, etc., also provides 24 volts DC power for motor brakes and thermal contacts.
Output capacity: At DC voltage, continuous output current is 33.8 amps, continuous output power is 22 kW, and peak current is 200.0 amps.
Other parameters: Capacitance is 660 microfars, inductance is 500 microhts, digital to analog converter can perform 12-bit positive true offset binary input code word, output range -10 to + 10 volts.
1394C-SJT22-A servo controller Physical Characteristics: Suitable for flat, stable vertical surface installation with a top clearance of 254 mm (10.0 in) and sides (including the bottom area of the system module) of 155 mm (6.1 in) in an environment free of moisture, oil, dust and corrosive gases.
Application fields: Can be used in the steel industry, glass factory, etc., can also be used in national defense, science and technology and other areas requiring high precision, low ripple and no high-frequency radiation interference.
There are many Allen-Bradley servo controller models related to 1394C-SJT22-A, and the following are some for you:
1394C-SJT05-D: Also in the Allen-Bradley Bulletin 1394/1394C servo controller product line, it is a modular, multi-axis motion control drive system module with a power rating of 5kW for industrial motion control systems supporting multiple axes. Provides direct line connections for 360 and 480 volt three-phase input power supplies and can be used as speed or torque control systems.
1394-SJT10-C-RL: Belongs to Allen-Bradley servo controller product series, with the basic functions of servo controller, suitable for some application scenarios with specific requirements for motion control, but in the power, interface and other specific parameters are different from 1394C-SJT22-A.
2711-T10G8L1: is the Allen-Bradley brand servo drive, modular structure, with unique functions and application characteristics, often used in the field of industrial automation control servo motor drive and control.
1756-L74: ControlLogix series programmable automation controllers belonging to Allen-Bradley for servo control, using advanced control algorithms and high-speed processors, supporting a variety of servo motors and feedback devices, with a variety of communication protocols and interfaces
